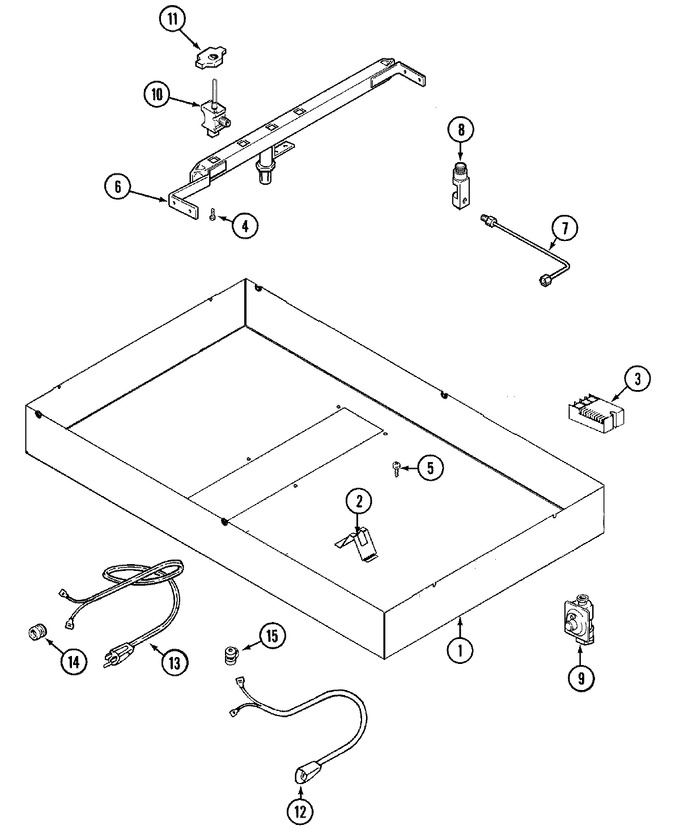

01 - Blower Plenum
02 - Body
03 - Top Assembly
04 - Wiring Information
05 - Wiring Information
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 71002769 | Bottom, Burner Box | 10 |
|
- | ||||
| 1 | 74007641 | Bottom, Burner Box | 14 |
|
- | ||||
| 2 | 71002771 | Bracket, Orifice Holder | 10 |
|
- | ||||
| 3 | WPW10475147 | Module, Spark (Replaces: 71002783) | 10 |
|
Immediately | $ 214.42 | |||
| 4 | Y705019 | Screw | 10 |
|
- | ||||
| 5 | WP90767 | Screw (Replaces: Y700502) | 10 |
|
Immediately | $ 7.04 | |||
| 6 | 71002803 | Pipe, Manifold | 10 |
|
$ 222.33 | ||||
| 7 | 71002804 | Tube (rf) | 10 |
|
- | ||||
| 7 | 71002805 | Tube (rr) | 10 |
|
- | ||||
| 7 | 71002806 | Tube (lf/lr) | 10 |
|
- | ||||
| 8 | 71002720 | Holder W/orifice (6.5k) | 10 |
|
- | ||||
| 8 | WP7103P178-60 | Nut, Mounting (Replaces: 71002746) | 10 |
|
$ 6.26 | ||||
| 8 | WP7509P062-60 | Orifice, Lp (8000) (Replaces: 71002726) | 10 |
|
$ 6.26 | ||||
| 8 | 7507P241-60 | Holder W/orifice (12k) (Replaces: 71002723) | 10 |
|
$ 74.54 | ||||
| 8 | 71002722 | Holder W/orifice (10k) | 10 |
|
- | ||||
| 8 | 71002728 | Orifice, Lp (4500) | 10 |
|
$ 8.51 | ||||
| 9 | W11106948 | Regulator, Pressure (Replaces: Y704545) | 10 |
|
Immediately | $ 215.01 | |||
| 10 | 71002775 | Valve, Burner (lg) | 10 |
|
$ 117.64 | ||||
| 10 | 71002776 | Valve, Burner | 10 |
|
- | ||||
| 11 | WP71003385 | Switch, Igniter (Replaces: 71003385) | 10 |
|
$ 117.71 | ||||
| 12 | Y04100505 | Cord, Receptacle | 10 |
|
- | ||||
| 13 | 71002748 | Cord, Power | 10 |
|
- | ||||
| 14 | 705833 | Relief, Strain | 10 |
|
- | ||||
| 15 | Y04100503 | Relief, Strain | 10 |
|
- |
