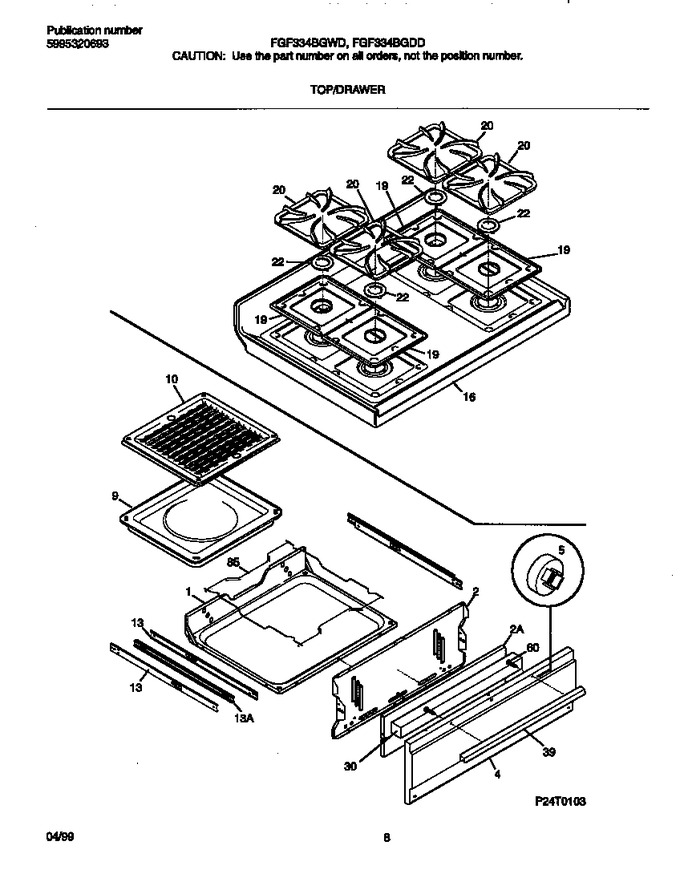

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	316110201		Carriage, Broiler				$ 232.57
2	316110800		Shield,broiler		Appelez-nous	-
2	316110101		Liner-low Broil		Appelez-nous	-
4	316056205		Panel-drawer-white		Appelez-nous	-
5	3131387		Fastener-spacer, Push-in Nut, Nylon		Appelez-nous	-
9	316073800		Pan-broiler		Appelez-nous	-
13	316111600		Glide-drawer,inner		Appelez-nous	-
13	316111500		Glide-drawer,outer		Appelez-nous	-
13	316111501		Glide-low Broil,outer		Appelez-nous	-
16	5303301546		Main Top, White		Appelez-nous	-
19	316011401		Pan-burner, Black ,(4)				$ 20.58
20	316085201		Grate, Black		Appelez-nous	-
22	316122100		Cap-burner, Powder Metal , Black ,small		Appelez-nous	-
30	316111400		Insulation,broiler Drawer		Appelez-nous	-
39	316019505		Handle-drawer, White				$ 82.27
60	316021109		Screw,hex ,8-18 X 0.375 ,back\bodyside   (Replaces: 316021105)			Immediately	$ 27.50
85	316115600		Rack-low Broil				$ 105.47
*18134	316519700		Screw, Cup Pt, 8-18 X 3/8, Hinge   (Replaces: 316021108)				$ 10.02
*18135	316021109		Screw-8-18x1/2 Tr Sqd Black   (Replaces: 316021110)			Immediately	$ 27.50
*18136	316021109		Screw-8-18 X 1/2 Tr Sqd White   (Replaces: 316021112)			Immediately	$ 27.50
*18138	5303280311		Screw, Waf Hd Sdr, 10-32 X 5/16, (2)				$ 6.62
10A	3205234		Insert, Broiler Pan		Appelez-nous	-
10B	5303280308		Screw-handle Mtg, Wafer Head, 10-24(t) X 2				$ 16.96
