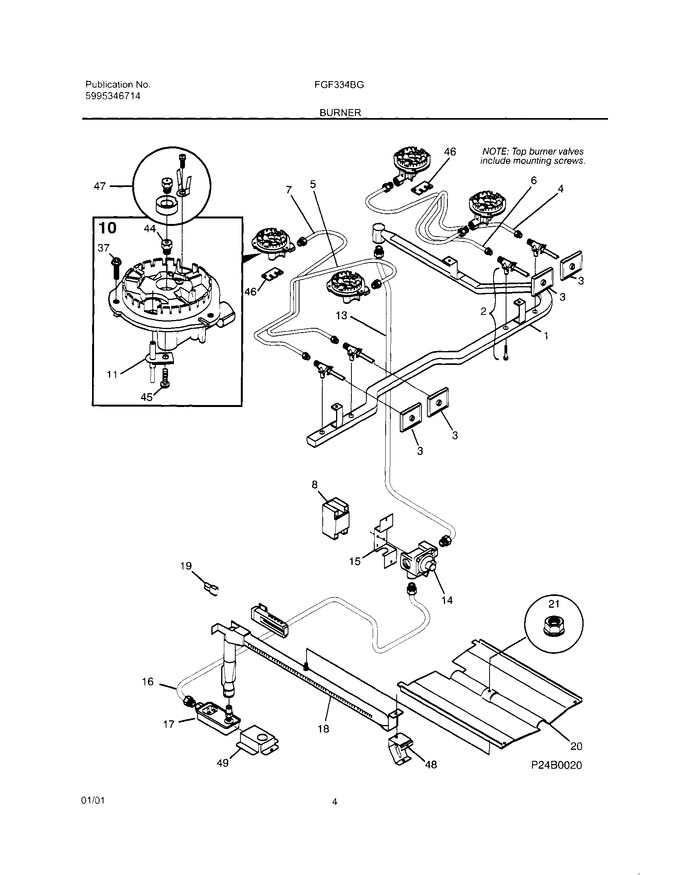

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	316134501		Manifold Pipe,1		Appelez-nous	-
2	316134100		Valve-top Burner				$ 61.27
3	316001827		Wiring Harness,ignitor ,with Switches				$ 224.65
4	316059612		Tube-burner, Red, Rf				$ 88.25
5	316059613		Tube-burner, Green, Lf				$ 87.16
6	316059614		Tube,burner ,natural ,rr				$ 125.06
7	316059615		Tube-burner, Black, Lr				$ 106.32
8	5304505695		Spark Module   (Replaces: 316135701)			Immediately	$ 68.16
10	5303935025		Burner Assy-top,sealed ,small ,9000 Btu		Appelez-nous	-
11	316011200		Ignitor,top Burner ,(4) ,w/mtg Bracket			Immediately	$ 38.68
13	316065005		Tube,3/8 ,aluminum ,rgltr To Manf ,with Fittings				$ 91.51
14	5304521339		Regulator,pressure   (Replaces: 316091706)			Immediately	$ 105.42
15	316091600		Bracket-regulator				$ 73.56
16	316065006		Tube-valve To Rgltr, 3/8				$ 122.09
17	3203459		Valve-safety				$ 303.64
18	316114300		Burner,oven				$ 169.88
19	5303935066		Ignitor,oven Kit ,w/nut & Instr			Immediately	$ 59.58
20	3203265		Baffle,oven Burner		Appelez-nous	-
21	154079601		Nut,hex Head Sems   (Replaces: 5303013272)				$ 0.41
37	316069301		Screw,burner Mtg				$ 2.99
44	5303210090		Orifice-top Burner, Small				$ 54.18
45	316011100		Screw-ignitor Mtg, Self-tapping, M3 X 5.8				$ 3.41
46	316074700		Plate-burner Tube		Appelez-nous	-
47	5303286386		Lp-conversion Kit				$ 143.29
48	3018603		Bracket,support ,oven Burner		Appelez-nous	-
49	3131438		Bracket, Safety Valve		Appelez-nous	-
NI	316021104		Screw-regulator/brkt,hex ,8-18 X 3/8 ,nick, 3				$ 7.79
NI	5303289034		Wiring Harness, Module/igniter				$ 188.84
NI	316134300		Screw,10-24 ,valve Mounting		Appelez-nous	-
NI	5303271648		Screw,wafer Hd Sq Dr ,8-18ab X 0.500 ,burner Box			Immediately	$ 13.46
