SELECT A DIAGRAM

01 - Base & Drive (orig. Rev. A-b)


02 - Control Panel (orig. Rev. A-b)


03 - Exterior (orig. Rev. A-b)


04 - Transmission (orig. Rev. A-b)


05 - Tub (orig. Rev. A-b)


06 - Water Carrying (orig. Rev. A-b)

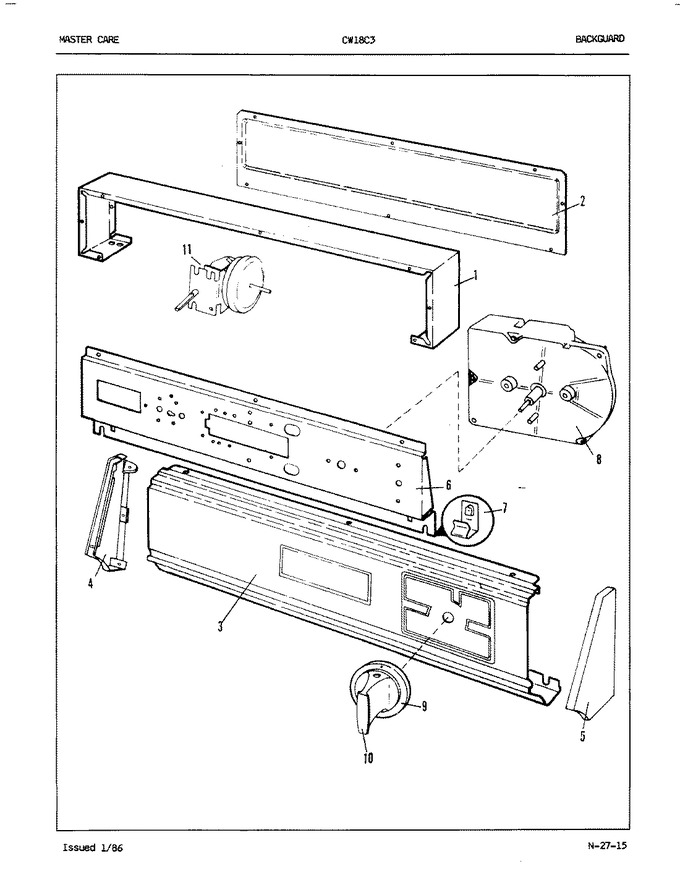

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	33-9668		Wrapper		Appelez-nous	-
1	W10124350		Not Required Part Or See Note Screw-wrapper To Cab.top 8-18 X 1/2 Hxwsh Hd (purchase Locally)		Appelez-nous	-
2	33-8909		Shield		Appelez-nous	-
2	33-4062		Reinforce Plate		Appelez-nous	-
2	33-3701		Backguard Pad		Appelez-nous	-
2	34-9487		Plate, Reinforcement		Appelez-nous	-
2	WP33002917		Screw   (Replaces: 25-7435)			Immediately	$ 6.90
2	W10124350		Not Required Part Or See Note Screw Shield Mtg. 8-18 X 1/2 Hx Wsh Hd (purchase Locally)		Appelez-nous	-
3	W10124350		Not Required Part Or See Note Lockwasher (purchase Locally)		Appelez-nous	-
3	35-0040		Control Panel		Appelez-nous	-
3	25-7760		Screw		Appelez-nous	-
4	33-6765		Lh End Cap		Appelez-nous	-
5	25-7496		Screw		Appelez-nous	-
5	33-6766		Rh End Cap		Appelez-nous	-
6	WP90767		Screw   (Replaces: 25-3092)			Immediately	$ 7.04
6	53-0243		Control Shield		Appelez-nous	-
7	25-7461		Clip		Appelez-nous	-
7	WP90767		Screw   (Replaces: 25-3092)			Immediately	$ 7.04
7	W10124350		Not Required Part Or See Note Washer No.10 Ext. Tooth (purchase Locally)		Appelez-nous	-
8	35-0484		Timer	B	Appelez-nous	-
8	35-0033		Timer		Appelez-nous	-
8	W10124350		Not Required Part Or See Note		Appelez-nous	-
8	35-0115		Timer Mtr 1rpm		Appelez-nous	-
9	35-0159		Hub/skirt Asm		Appelez-nous	-
10	35-0495		Timer Knob	B	Appelez-nous	-
10	35-0495		Timer Knob		Appelez-nous	-
11	35-0110		Pressure Switch		Appelez-nous	-
11	WP90767		Screw   (Replaces: 25-3092)			Immediately	$ 7.04

    View Diagram in Separate Window       Print Part List
