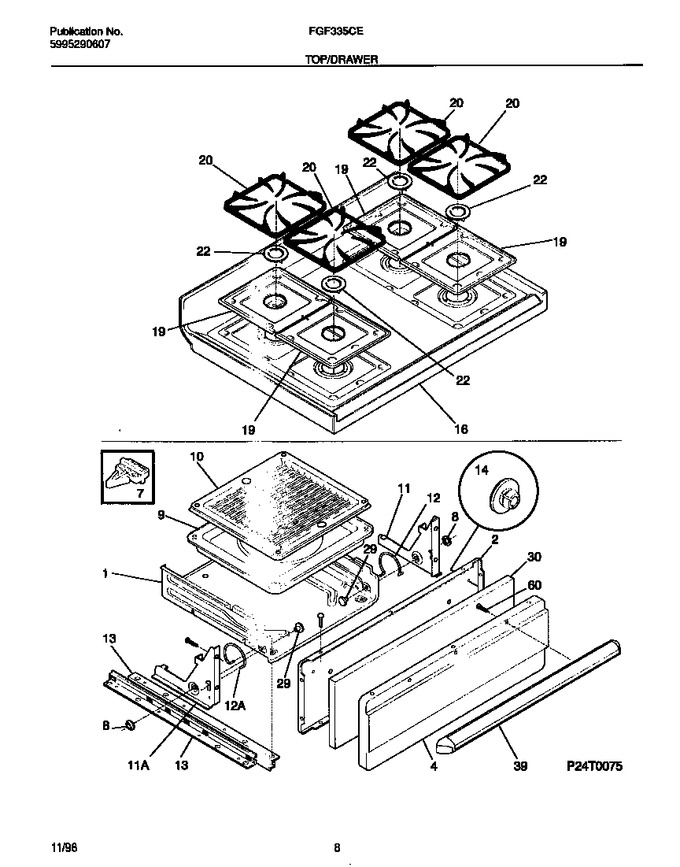

1	3018608		Drawer-broiler		Appelez-nous	-
2	3202803		Liner, Broiler Door		Appelez-nous	-
4	08067785		Screw, Hex Washer Head, 8-18(ab) X 1/2 (not Illustrated)		Appelez-nous	-
4	316056205		Panel-drawer-white		Appelez-nous	-
7	3018610		Glide-broiler				$ 29.40
8	3131386		Nut, Push-on, (2)		Appelez-nous	-
9	5303013568		Pan-broiler		Appelez-nous	-
10	5303131356		Insert-broiler Pan		Appelez-nous	-
11	316066300		Bracket-hinge, Broiler Lh, (4)		Appelez-nous	-
11	316066301		Bracket-hinge, Broiler Rh		Appelez-nous	-
12	3018618		Spring-broiler, Lh		Appelez-nous	-
12	3018619		Spring-broiler, Rh		Appelez-nous	-
13	3131153		Channel-broiler		Appelez-nous	-
14	3206216		Plug-button, Glide		Appelez-nous	-
16	5303307709		Main Top, White		Appelez-nous	-
16	316077401		Shield-maintop, (2) (not Illustrated)		Appelez-nous	-
19	316011413		Pan-burner, Gray, Small				$ 113.87
19	316011417		Pan-burner, Gray, Large				$ 102.20
20	316085301		Grate, Gray, (4)		Appelez-nous	-
22	316011013		Cap-burner, Matte Gray, Large, (2)		Appelez-nous	-
22	316011006		Cap-burner, Matte Gray, (4), Small		Appelez-nous	-
29	3018614		Pin-hinge		Appelez-nous	-
30	5303131258		Insulation, Broiler Drawer		Appelez-nous	-
39	316026103		Handle-drawer, White		Appelez-nous	-
60	316089500		Screw, Drawer Handle 10-16 X .486, Safety Valve, (2)				$ 13.46
*75405	316077400		Shield-maintop, (2)		Appelez-nous	-
*75406	316519700		Screw, Cup Pt, 8-18 X 3/8, Manifold Pnl   (Replaces: 316021108)				$ 10.02
*75407	5303280311		Screw, Waf Hd Sdr, 10-32 X 5/16				$ 6.62
*75408	5303288567		Screw, 8-18 X 3/8, (4)		Appelez-nous	-
*75409	5303288574		Screw, Truss Head, 8-10 X 0.375		Appelez-nous	-
