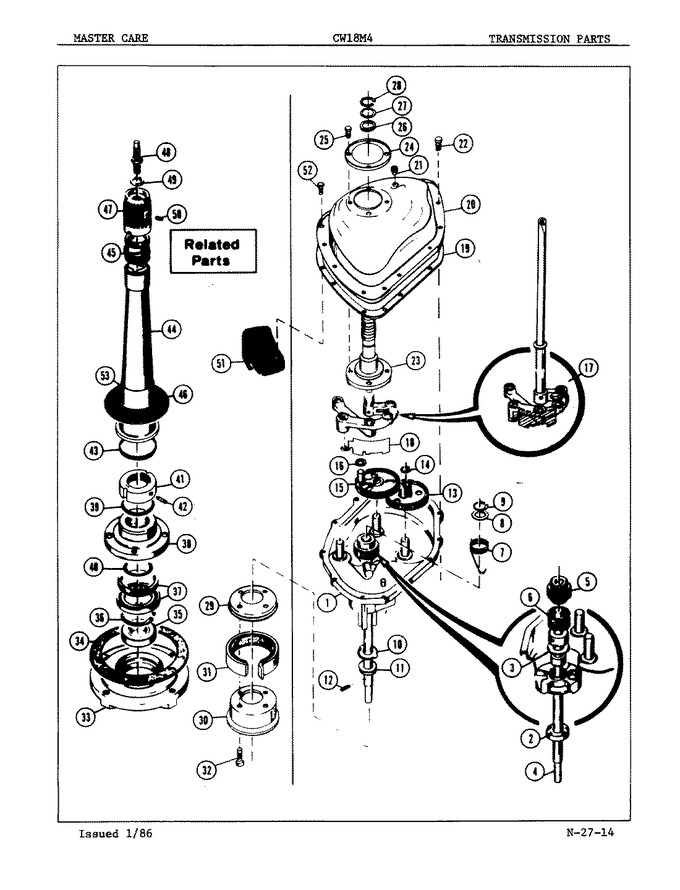

SELECT A DIAGRAM

01 - Base & Drive (orig. Rev. A-b)


02 - Control Panel (orig. Rev. A-b)


03 - Exterior (orig. Rev. A-b)


04 - Transmission (orig. Rev. A-b)


05 - Tub (orig. Rev. A-b)


06 - Water Carrying (orig. Rev. A-b)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	35-0630		Transmission		Appelez-nous	-
1	33-9986		Transm Housing		Appelez-nous	-
2	33-9208		Seal		Appelez-nous	-
3	25-7274		Washer, Steel		Appelez-nous	-
3	33-9023N		Clutch Asm		Appelez-nous	-
4	33-9022		Drive Shaft		Appelez-nous	-
5	33-6115		Drive Pinion		Appelez-nous	-
6	33-3195		Spring		Appelez-nous	-
7	33-6463		Spring		Appelez-nous	-
8	25-7415		Washer, Flat		Appelez-nous	-
9	25-7173		25-7708		Appelez-nous	-
10	33-9217		Thrust Washer		Appelez-nous	-
11	33-4944		Bearing		Appelez-nous	-
12	25-6120		Pin		Appelez-nous	-
13	33-3228		Cluster Gear		Appelez-nous	-
14	25-7175		Retaining Ring		Appelez-nous	-
15	33-5910		Gear Crank		Appelez-nous	-
16	25-7091		Thrust Washer		Appelez-nous	-
17	33-9796		Linkage Asm Fab		Appelez-nous	-
17	35-0628		Linkage Asm	A	Appelez-nous	-
18	33-9103		Oil Splsh Plate		Appelez-nous	-
18	25-7175		Retaining Ring		Appelez-nous	-
19	33-4286N		Transm Cvr Kit		Appelez-nous	-
19	33-9366		Cover Gasket		Appelez-nous	-
20	33-7182		Transm Cover		Appelez-nous	-
21	33-9373		Oil Fill Plug		Appelez-nous	-
22	25-7758		Screw		Appelez-nous	-
23	33-8763		Drive Hub & Brg		Appelez-nous	-
24	33-7187		Covr Reinforcmt		Appelez-nous	-
25	25-7498		Screw		Appelez-nous	-
26	25-7057		Washer, Flat		Appelez-nous	-
27	25-7051		Washer, Flat		Appelez-nous	-
28	25-7708		Retaining Ring		Appelez-nous	-
28	LA-1000		Brake Kit		Appelez-nous	-
29	33-9984		Retainer Plate		Appelez-nous	-
30	33-9983		Brake Hub		Appelez-nous	-
31	33-9686		Band&lining Asm		Appelez-nous	-
32	25-7399		Screw		Appelez-nous	-
32	33-4282N		Housing Kit		Appelez-nous	-
33	33-9522		Brg & Hsg Asm		Appelez-nous	-
34	33-9046		Gasket		Appelez-nous	-
35	33-0260		Spin Bearing		Appelez-nous	-
36	25-7178		Retaining Ring		Appelez-nous	-
37	33-7224		Tub Seal Asm		Appelez-nous	-
38	33-9987		Basket Hub Asm		Appelez-nous	-
39	25-7749		O Ring		Appelez-nous	-
40	25-7722		``o`` Ring, Drive Tube		Appelez-nous	-
41	33-9504		Locknut		Appelez-nous	-
42	33-4283N		Centerpost Kit		Appelez-nous	-
42	25-7120		Set Screw		Appelez-nous	-
43	33-8718		Gasket		Appelez-nous	-
44	33-9498		Centerpost Asm		Appelez-nous	-
45	33-7806		Seal		Appelez-nous	-
46	33-9047		Gasket		Appelez-nous	-
47	33-9729		Drive Block Asm		Appelez-nous	-
48	34-1248		Stud		Appelez-nous	-
49	25-7316		Flat Washer		Appelez-nous	-
50	25-7378		Set Screw		Appelez-nous	-
51	35-0013		Counterweight		Appelez-nous	-
52	25-7359		Screw		Appelez-nous	-
53	35-0466		Gallon Of Oil		Appelez-nous	-
53	33-6790		Bearing, Agitator		Appelez-nous	-
