SELECT A DIAGRAM

01 - Cover


02 - Backguard


03 - Burner


04 - Body

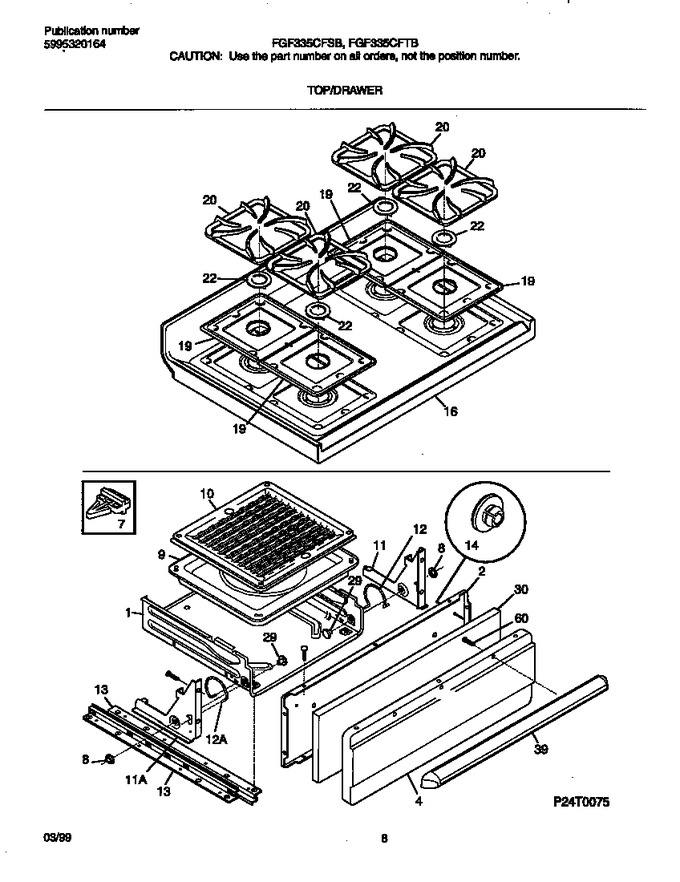

05 - Top/drawer


06 - Door


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	3018608		Drawer-broiler		Appelez-nous	-
2	3202803		Liner, Broiler Door		Appelez-nous	-
4	316056202		Panel-drawer,almond		Appelez-nous	-
7	3018610		Glide-broiler				$ 29.40
8	3131386		Nut, Push-on, (2)		Appelez-nous	-
9	5303013568		Pan-broiler		Appelez-nous	-
10	5303131356		Insert-broiler Pan		Appelez-nous	-
11	316066300		Bracket-hinge, Broiler Lh		Appelez-nous	-
11	316066301		Bracket-hinge, Broiler Rh		Appelez-nous	-
12	3018619		Spring-broiler, Rh		Appelez-nous	-
12	3018618		Spring-broiler, Lh		Appelez-nous	-
13	3131153		Channel-broiler		Appelez-nous	-
14	3206216		Plug-button, Glide		Appelez-nous	-
16	5303301547		Main Top, Almond		Appelez-nous	-
19	316011410		Pan-burner,almond ,(4)		Appelez-nous	-
20	316085304		Grate, (4)		Appelez-nous	-
22	316098508		Cap-burner,small ,gloss Gray		Appelez-nous	-
29	3018614		Pin-hinge		Appelez-nous	-
30	5303131258		Insulation, Broiler Drawer		Appelez-nous	-
39	316026107		Handle-drawer,almond		Appelez-nous	-
*81216	316519700		Screw,cup Pt ,8-18 X 3/8 ,hinge ,ind Lght Brkt,manifold   (Replaces: 316021108)				$ 10.02
*81217	316021109		Screw-8-18x1/2 Tr Sqd Black   (Replaces: 316021110)			Immediately	$ 27.50
*81219	316021113		Screw-8-18x1/2 Tr Sqd Almond		Appelez-nous	-
*81220	5303280311		Screw, Waf Hd Sdr, 10-32 X 5/16, (2)				$ 6.62

    View Diagram in Separate Window       Print Part List
