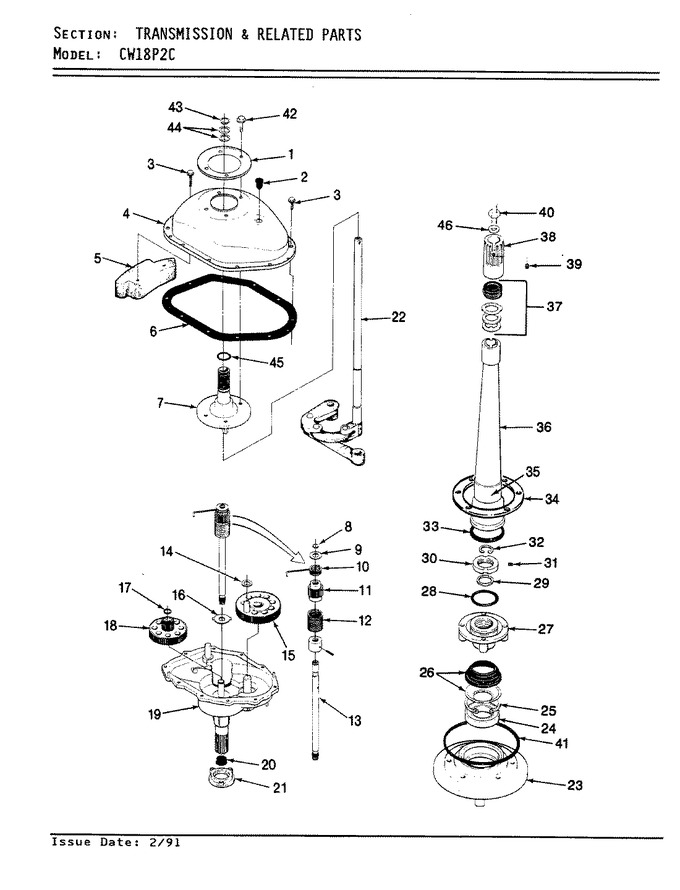

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	33-9893		Reinforcmt Covr		Appelez-nous	-
2	33-9373		Oil Fill Plug		Appelez-nous	-
3	25-7916		Bolt		Appelez-nous	-
4	33-4286N		Transm Cvr Kit		Appelez-nous	-
5	35-2130		Counter Weight		Appelez-nous	-
6	35-1030		Gasket, Transmission Housing		Appelez-nous	-
7	33-8763		Drive Hub & Brg		Appelez-nous	-
8	25-7847		Ring, Retaining (clutch Assy.)		Appelez-nous	-
9	25-7416		Washer, Flat		Appelez-nous	-
10	33-6114		Spring		Appelez-nous	-
11	35-2001		Pinion, Drive		Appelez-nous	-
12	33-3195		Spring		Appelez-nous	-
13	LA-2005		Clutch Assy Kit		Appelez-nous	-
13	35-2116		Drive Shaft & Hub Assy		Appelez-nous	-
14	25-7091		Thrust Washer		Appelez-nous	-
15	35-2043		Crank Gear		Appelez-nous	-
16	35-2070		Washer, Steel W/tabs		Appelez-nous	-
16	35-2462		Thrust Washer		Appelez-nous	-
16	25-7274		Washer, Steel		Appelez-nous	-
17	25-7853		Retaining Ring		Appelez-nous	-
18	35-2013		Cluster Gear		Appelez-nous	-
19	35-2012		Transmission Housing Assy		Appelez-nous	-
20	35-2010		Seal,transmission Housing(lip)		Appelez-nous	-
21	35-2111		Housing & Bearing Assy		Appelez-nous	-
22	35-0628		Linkage Asm		Appelez-nous	-
23	35-2059		Housing, W/o Bearing & Seal		Appelez-nous	-
24	35-2205		Bearing, Spin				$ 40.16
25	25-7849		Retaining Ring		Appelez-nous	-
26	33-7224N		Tub Seal Asm				$ 33.33
27	33-9987		Basket Hub Asm		Appelez-nous	-
28	35-2061		Gasket, Tub To Housing		Appelez-nous	-
29	25-7722		``o`` Ring, Drive Tube		Appelez-nous	-
30	33-9507		Locknut Assy		Appelez-nous	-
31	25-7120		Set Screw		Appelez-nous	-
32	25-7848		Retaining Ring		Appelez-nous	-
33	33-8718		Gasket		Appelez-nous	-
34	35-0930		Gasket		Appelez-nous	-
35	33-6790		Bearing, Agitator		Appelez-nous	-
36	33-4283N		Centerpost Kit		Appelez-nous	-
37	33-7806N		Seal Assembly		Appelez-nous	-
38	33-9729		Drive Block Asm		Appelez-nous	-
39	25-7378		Set Screw		Appelez-nous	-
40	33-6817		Stud		Appelez-nous	-
41	35-2060		Seal, Tub To Housing		Appelez-nous	-
42	25-7359		Screw		Appelez-nous	-
43	25-7848		Retaining Ring		Appelez-nous	-
44	25-7057		Washer, Flat		Appelez-nous	-
45	25-7722		``o`` Ring, Drive Tube		Appelez-nous	-
46	LA-2001		Transmission Replacement Kit		Appelez-nous	-
46	25-7316		Flat Washer		Appelez-nous	-
