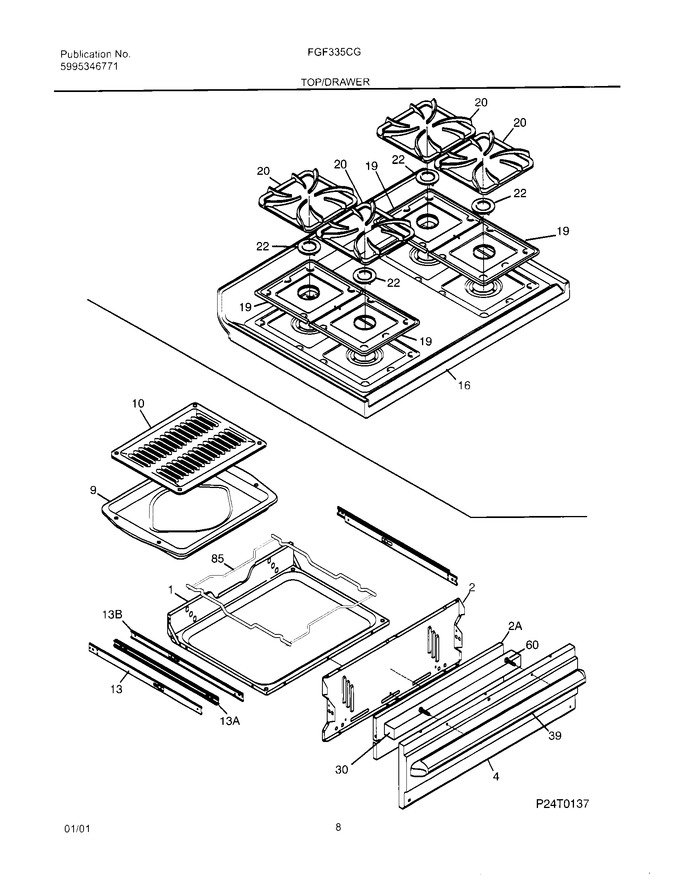

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	316110201		Carriage, Broiler				$ 232.57
2	316110800		Shield,broiler		Appelez-nous	-
2	316110101		Liner-low Broil		Appelez-nous	-
4	316056202		Panel-drawer,almond		Appelez-nous	-
9	316081900		Pan,broiler				$ 65.89
10	316082000		Insert-broiler Pan				$ 68.85
13	316111501		Glide-low Broil,outer		Appelez-nous	-
13	316111600		Glide-low Broil,inner		Appelez-nous	-
13	316111502		Glide-low Broil, Inner		Appelez-nous	-
16	5303301547		Panel-main Top,almond		Appelez-nous	-
19	316011410		Pan-burner,small ,almond		Appelez-nous	-
20	316085304		Grate,gray ,(4)		Appelez-nous	-
22	316122101		Cap-burner,small ,gray ,(4)				$ 34.85
30	316111400		Insulation,broiler Drawer		Appelez-nous	-
39	316026107		Handle-drawer,almond		Appelez-nous	-
60	5303280308		Screw-handle Mtg,wafer Hd Sq Dr ,10-24t X 2.00				$ 16.96
85	316115600		Rack-low Broil				$ 105.47
NI	5303280311		Screw,wafer Hd Sq Dr ,10-32 X 0.312 ,(2)				$ 6.62
NI	316021109		Screw,hex Head Cup Pt ,8-18 X 0.375 ,black,back/bodyside   (Replaces: 316021105)			Immediately	$ 27.50
NI	316021109		Screw,8-18 X 0.500 ,black   (Replaces: 316021110)			Immediately	$ 27.50
NI	316021113		Screw,8-18 X 0.500 ,almond		Appelez-nous	-
NI	316021120		Screw,shoulder Head ,8-18 X 5/8 ,(2) ,square Drive				$ 13.28
NI	316519700		Screw,cup Pt ,8-18 X 0.375 ,chrome ,hinge,ind Light,manifold Panel   (Replaces: 316021108)				$ 10.02
