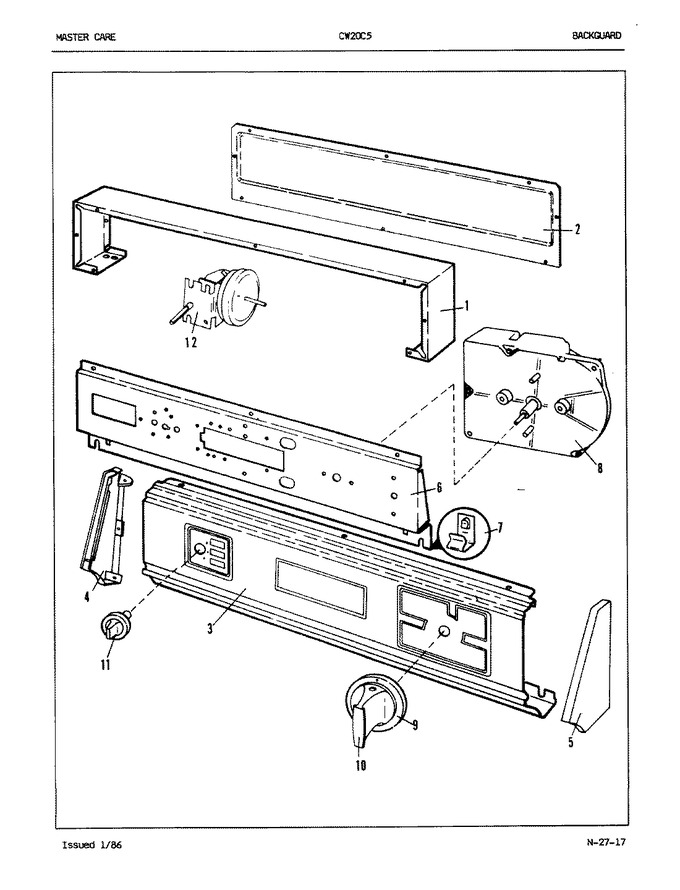

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	33-9668		Wrapper		Appelez-nous	-
1	W10124350		Not Required Part Or See Note Screw-wrapper To Cab.top 8-18 X 1/2 Hxwsh Hd (purchase Locally)		Appelez-nous	-
2	WP33002917		Screw   (Replaces: 25-7435)			Immediately	$ 6.90
2	33-8909		Shield		Appelez-nous	-
2	34-9487		Plate, Reinforcement		Appelez-nous	-
2	33-4062		Reinforce Plate		Appelez-nous	-
2	W10124350		Not Required Part Or See Note Screw Shield Mtg. 8-18 X 1/2 Hx Wsh Hd (purchase Locally)		Appelez-nous	-
2	33-3701		Backguard Pad		Appelez-nous	-
3	35-0041		Control Panel		Appelez-nous	-
3	W10124350		Not Required Part Or See Note Lockwasher (purchase Locally)		Appelez-nous	-
3	25-7760		Screw		Appelez-nous	-
4	33-6765		Lh End Cap		Appelez-nous	-
5	25-7496		Screw		Appelez-nous	-
5	33-6766		Rh End Cap		Appelez-nous	-
6	53-0243		Control Shield		Appelez-nous	-
6	WP90767		Screw   (Replaces: 25-3092)			Immediately	$ 7.04
7	WP90767		Screw   (Replaces: 25-3092)			Immediately	$ 7.04
7	25-7461		Clip		Appelez-nous	-
7	W10124350		Not Required Part Or See Note Washer No.10 Ext. Tooth (purchase Locally)		Appelez-nous	-
8	35-0485		Timer	B	Appelez-nous	-
8	35-0117		Timer Mtr 1/2rpm		Appelez-nous	-
8	W10124350		Not Required Part Or See Note Screw-timer To Shield 10-32 X 3/8 Hx Hd (purchase Locally)		Appelez-nous	-
8	35-0034		Timer		Appelez-nous	-
9	35-0159		Hub/skirt Asm		Appelez-nous	-
10	33-2862		Timer Knob		Appelez-nous	-
10	35-0495		Timer Knob	B	Appelez-nous	-
10	25-6044		Set Screw		Appelez-nous	-
11	35-0158		Selector Knob		Appelez-nous	-
12	35-0112		Pressure Switch		Appelez-nous	-
12	WP90767		Screw   (Replaces: 25-3092)			Immediately	$ 7.04
