02 - Backguard
03 - Cooktop Parts
04 - Drawer Parts
05 - Burner, Manifold And Gas Control
06 - Body Parts
07 - Door Parts
SELECT A DIAGRAM
New Model Search:

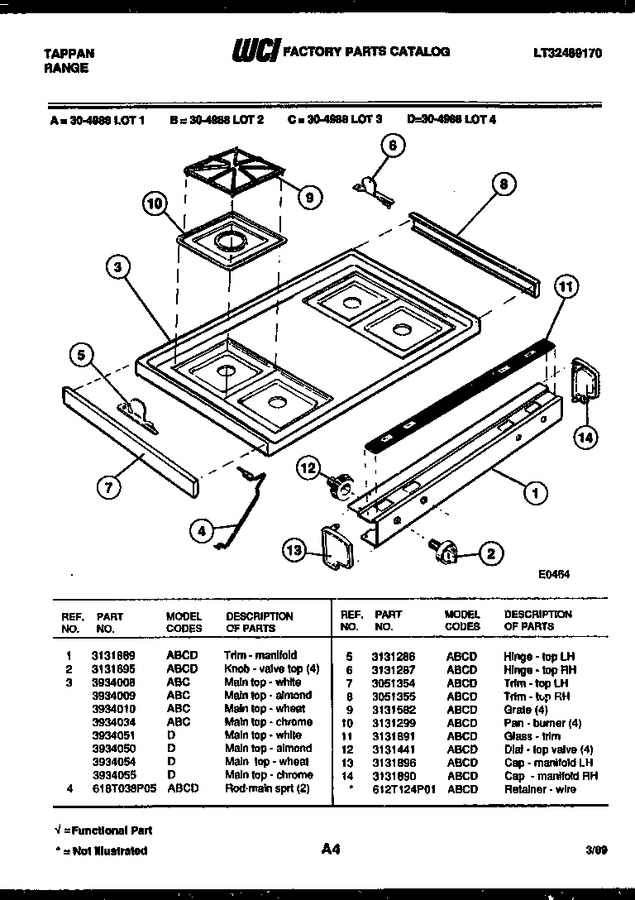

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 3131889 | Trim Manifold |
|
- | |||||
| 2 | 3131695 | Knob-valve Top (4) |
|
- | |||||
| 3 | 3934010 | Main Top-wheat |
|
- | |||||
| 4 | 618T038P05 | Rod-main Sprt (2) |
|
- | |||||
| 5 | 3131286 | Hinge Top Lh |
|
- | |||||
| 6 | 3131287 | Hinge Top Rh |
|
- | |||||
| 7 | 3051354 | Trim-top Lh |
|
- | |||||
| 8 | 3051355 | Trim-top Rh |
|
- | |||||
| 9 | 3131582 | Grate (4) |
|
- | |||||
| 10 | 3131299 | Pan-burner (4) |
|
- | |||||
| 11 | 3131891 | Glass Trim |
|
- | |||||
| 12 | 3131441 | Dial-top Valve\(4) |
|
- | |||||
| 13 | 3131896 | Cap Manifold (lh) |
|
- | |||||
| 14 | 3131890 | Cap Manifold (rh) |
|
- | |||||
| *11484 | 612T124P01 | Retainer - Wire |
|
- |
