Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 35-0934 Control Panel Appelez-nous -
1 25-7793 Screw Appelez-nous -
1 W10124350 Not Required Part Or See Note Lockwasher (purchase Locally) Appelez-nous -
2 53-0265 Lh Endcap Appelez-nous -
3 53-0277 Trim, End Cap (rt) Appelez-nous -
3 53-0264 Rh Endcap Appelez-nous -
3 25-7496 Screw Appelez-nous -
3 25-7702 Speedclip, End Cap To Ctrl Pnl Appelez-nous -
3 53-0278 Trim, End Cap (lt) Appelez-nous -
4 35-0365 Control Shield Appelez-nous -
4 WP90767 Screw   (Replaces: 25-3092) In-Stock Immediately $ 7.04

5 25-0205 Screw Appelez-nous -
5 35-0115 Timer Mtr 1rpm Appelez-nous -
5 35-0484 Timer Appelez-nous -
6 35-0679 Knob Asm Appelez-nous -
7 35-0496 Timer Knob Appelez-nous -
8 WP90767 Screw   (Replaces: 25-3092) In-Stock Immediately $ 7.04

8 35-0110 Pressure Switch Appelez-nous -
9 25-7852 Speedclip, Rr Shld To End Cap Appelez-nous -
9 53-0268 Rear Shield Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

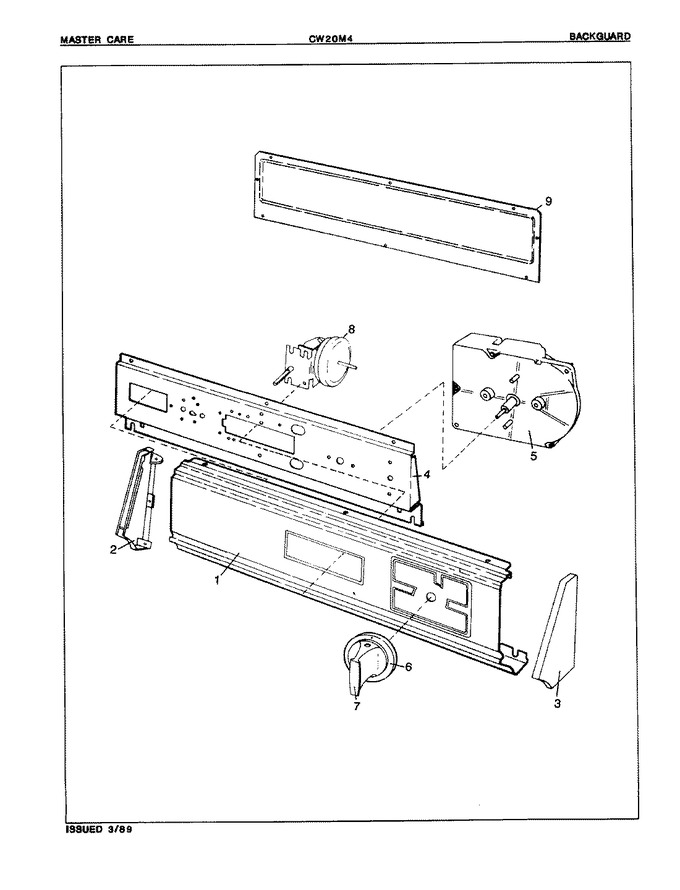

Diagram for CW20M4A
