Diagram for 01 - Base & Drive (orig. Rev. A-b)
01 - Base & Drive (orig. Rev. A-b)

Diagram for 02 - Control Panel (orig. Rev. A-b)
02 - Control Panel (orig. Rev. A-b)

Diagram for 03 - Exterior (orig. Rev. A-b)
03 - Exterior (orig. Rev. A-b)

Diagram for 04 - Transmission (orig. Rev. A-b)
04 - Transmission (orig. Rev. A-b)

Diagram for 05 - Tub (orig. Rev. A-b)
05 - Tub (orig. Rev. A-b)

Diagram for 06 - Water Carrying (orig. Rev. A-b)
06 - Water Carrying (orig. Rev. A-b)


New Model Search:


1-888-572-4577
< Back to Home
Keyword Search:

Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 W10124350 Not Required Part Or See Note Screw- Purchase Locally Appelez-nous -
1 35-0572 Control Panel Appelez-nous -
1 25-7793 Screw Appelez-nous -
2 53-0265 Lh Endcap Appelez-nous -
3 25-7760 Screw Appelez-nous -
3 25-7702 Speedclip, End Cap To Ctrl Pnl Appelez-nous -
3 53-0264 Rh Endcap Appelez-nous -
3 53-0277 Trim, End Cap (rt) Appelez-nous -
3 53-0278 Trim, End Cap (lt) Appelez-nous -
4 WP90767 Screw   (Replaces: 25-3092) In-Stock Immediately $ 7.04

4 53-0365 Control Shield Appelez-nous -
5 35-0117 Timer Mtr 1/2rpm Appelez-nous -
5 35-0485 Timer Appelez-nous -
5 WP489483 Screw   (Replaces: 25-0088) Special Order $ 9.78

6 35-0172 Knob Asm Appelez-nous -
7 35-0496 Timer Knob Appelez-nous -
8 35-0146 Knob Appelez-nous -
9 WP90767 Screw   (Replaces: 25-3092) In-Stock Immediately $ 7.04

9 35-0112 Pressure Switch Appelez-nous -
10 25-7697 Screw Appelez-nous -
10 25-7852 Speedclip, Rr Shld To End Cap Appelez-nous -
10 25-7583 Plastic Nut Appelez-nous -
10 WP90767 Screw   (Replaces: 25-3092) In-Stock Immediately $ 7.04

10 25-7592 Screw Appelez-nous -
10 25-7851 Speedclip, End Cap To Top Appelez-nous -
10 34-9487 Plate, Reinforcement Appelez-nous -
10 53-0268 Rear Shield Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

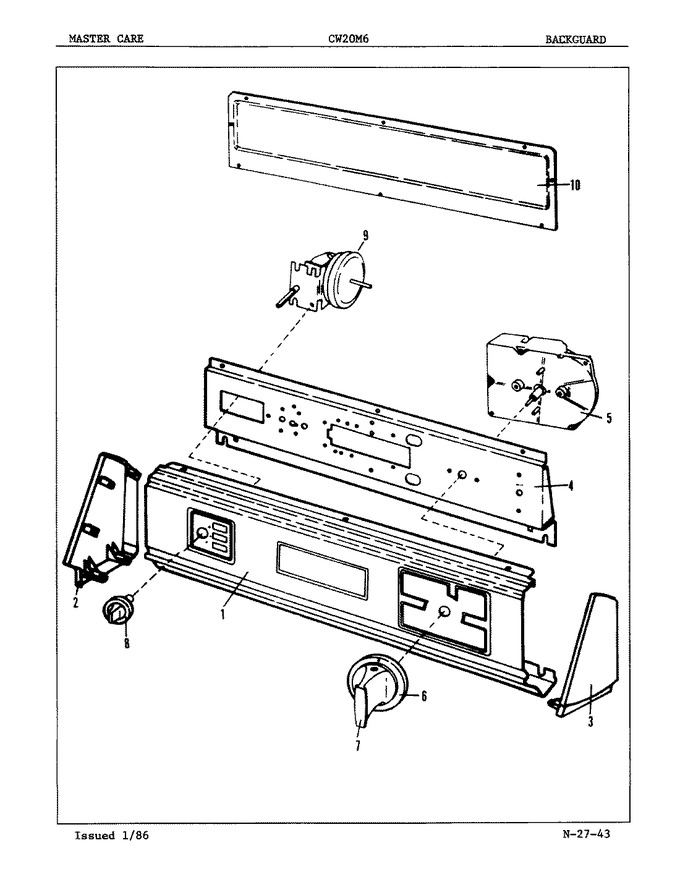

Diagram for CW20M6
