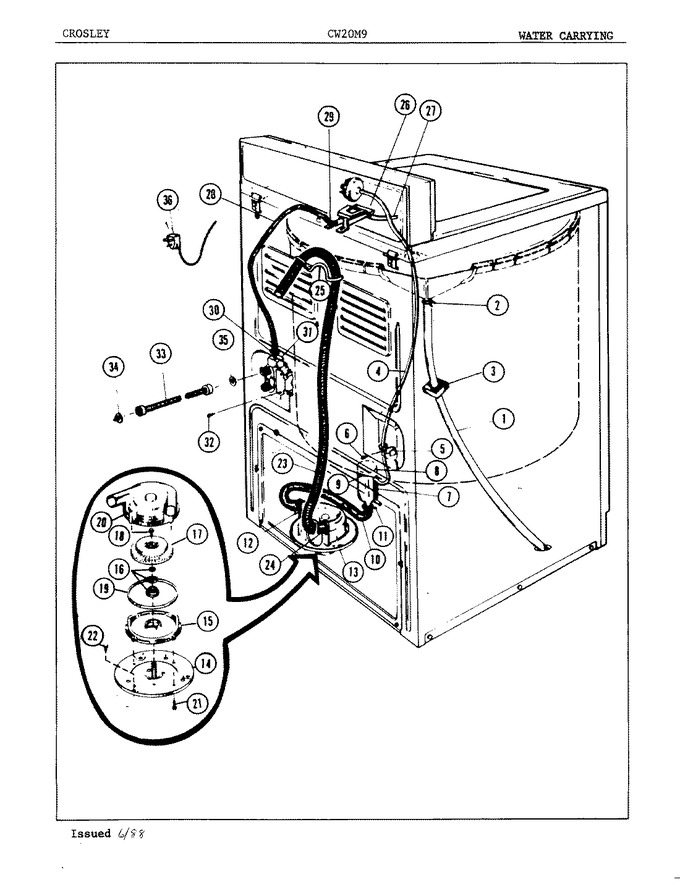

SELECT A DIAGRAM

01 - Base & Drive (orig. Rev. A)


02 - Control Panel (orig. Rev. A)


03 - Exterior (orig. Rev. A)


04 - Transmission (orig. Rev. A)


05 - Tub (orig. Rev. A)


06 - Water Carrying (orig. Rev. A)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	35-0059		Overflow Hose		Appelez-nous	-
2	25-6057		Hose Clamp		Appelez-nous	-
3	35-0706		Pad, Foam		Appelez-nous	-
4	33-4090		Hose		Appelez-nous	-
4	WP596669		Clamp, Pressure Switch Hose   (Replaces: 25-7796)			Immediately	$ 7.56
5	33-6099		Clamp		Appelez-nous	-
6	W10124350		Not Required Part Or See Note Screw,10-12 X 3/8 (purchase Locally)		Appelez-nous	-
7	33-7314		Sump Asm		Appelez-nous	-
8	33-3633		Hose		Appelez-nous	-
9	25-7003		Clamp		Appelez-nous	-
10	33-6091		Hose		Appelez-nous	-
11	25-6066		Hose Clamp		Appelez-nous	-
12	25-6055		Hose Clamp		Appelez-nous	-
13	35-1069		Pump Assy Fab	A	Appelez-nous	-
13	35-0008		Water Pump		Appelez-nous	-
14	33-6035		Plate & Pulley Assy.		Appelez-nous	-
15	33-6029		Pump Base		Appelez-nous	-
16	35-0707		Seal, Seat & ``o`` Ring		Appelez-nous	-
17	35-0010		Impeller		Appelez-nous	-
18	WP308544		Screw Purchase   (Replaces: 25-7418)			Immediately	$ 6.98
19	33-6032		Gasket		Appelez-nous	-
20	35-0009		Pump Housing		Appelez-nous	-
21	WP3196164		Screw   (Replaces: 25-7405)			Immediately	$ 7.82
22	25-7419		Screw		Appelez-nous	-
23	33-9535		Discharge Hose		Appelez-nous	-
23	25-7048		Washer		Appelez-nous	-
24	33-9536		Hose Adapter		Appelez-nous	-
24	WP285655		Hose Clamp   (Replaces: 25-7881)			Immediately	$ 7.55
25	33-9537		Retainer		Appelez-nous	-
25	WP285655		Clamp   (Replaces: 25-7797)			Immediately	$ 7.55
26	25-7086		Washer		Appelez-nous	-
26	WP90767		Screw   (Replaces: 25-3092)			Immediately	$ 7.04
26	25-7583		Plastic Nut		Appelez-nous	-
26	33-9830		Inlet Flume		Appelez-nous	-
27	33-6038		Flume Ext		Appelez-nous	-
28	35-0541		Watr Inlet Hose		Appelez-nous	-
29	WP596669		Clamp   (Replaces: 25-7867)			Immediately	$ 7.56
30	WP489503		Hose Clamp   (Replaces: 25-7866)			Immediately	$ 9.68
31	33-7058		Sub 36-1456		Appelez-nous	-
31	35-2374N		Mixing Valve   (Replaces: 35-0085)				$ 276.92
32	25-7851		Speedclip, End Cap To Top		Appelez-nous	-
33	W11629055		Hose, Inlet   (Replaces: 35-0874)				$ 24.93
33	WP89503		Hose, 4` Inlet   (Replaces: 33-7891)			Immediately	$ 21.68
34	33-7313		Strainer, Hose		Appelez-nous	-
35	25-7048		Washer		Appelez-nous	-
36	35-0680		Cord, Power		Appelez-nous	-
