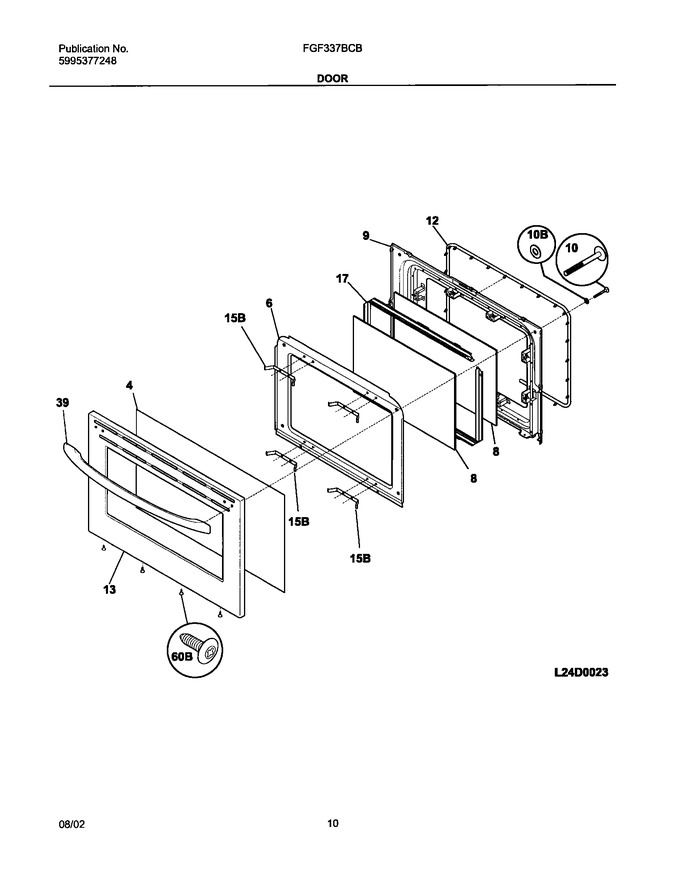

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
4	316240000		Glass,oven Door ,black ,outer				$ 273.62
6	316222711		Shield,wool ,black ,oven Door				$ 47.90
8	5304503232		Glass,oven Door ,clear ,inner   (Replaces: 316237100)				$ 116.95
9	316230605		Liner,oven Door		Appelez-nous	-
10	316001015		Screw,waf Hd Sq ,10-24 X 1.25 ,(2) ,handle Mtg				$ 9.45
12	316239700		Seal,oven Door			Immediately	$ 152.43
13	316209401		Panel,oven Door ,stainless ,outer		Appelez-nous	-
17	316117701		Spacer,door Glass ,(2)				$ 53.66
39	316203000		Handle,door ,black		Appelez-nous	-
10B	316008401		Washer,3/4 Od X 1/4 Id ,steel				$ 11.34
15B	316085501		Bracket,glass Support				$ 41.74
60B	5303271648		Screw,wafer Hd Sq Dr ,8-18ab X 0.5			Immediately	$ 13.46
NI	5303280311		Screw,wafer Hd Sq Dr ,10-32 X 0.312				$ 6.62
NI	5303285179		Screw,wafer Head `8-32t X 0.500 ,black				$ 13.46
NI	01300019EA		Cleaner, Stainless Steel   (Replaces: 218490900)			Immediately	$ 21.27
NI	316021109		Screw`8-18 X 0.5 ,chrome			Immediately	$ 27.50
NI	316021109		Screw,8-18 X 0.5 ,black   (Replaces: 316021110)			Immediately	$ 27.50
