Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 25-7702 Speedclip, End Cap To Ctrl Pnl A-E Appelez-nous -
1 25-7793 Screw A-E Appelez-nous -
1 35-2695 Control Panel A-E Appelez-nous -
2 35-2487 Cap, End (rt) A-E Appelez-nous -
2 35-2488 Cap, End (lt) A-E Appelez-nous -
3 25-7851 Speedclip, End Cap To Top A-E Appelez-nous -
3 25-7697 Screw A-E Appelez-nous -
3 34-9487 Plate, Reinforcement A-E Appelez-nous -
4 25-7852 Speedclip, Rr Shld To End Cap A-E Appelez-nous -
4 WP33002917 Screw   (Replaces: 25-7435) A-E In-Stock Immediately $ 6.90

5 53-0278 Trim, End Cap (lt) A-E Appelez-nous -
5 53-0277 Trim, End Cap (rt) A-E Appelez-nous -
6 25-7760 Screw A-E Appelez-nous -
7 WP90767 Screw   (Replaces: 25-3092) A-E In-Stock Immediately $ 7.04

8 25-7702 Speedclip, End Cap To Ctrl Pnl A-E Appelez-nous -
9 53-1676 Shield, Control A-E Appelez-nous -
10 WP12990527 Screw, Sems   (Replaces: 25-3457) A-E In-Stock Immediately $ 7.15

10 25-7853 Retaining Ring A-E Appelez-nous -
10 35-2688 Shield, Control Panel (rear) A-E Appelez-nous -
10 WP90767 Screw   (Replaces: 25-3092) A-E In-Stock Immediately $ 7.04

11 35-2752CP Timer   (Replaces: 35-2752) A-E Appelez-nous -
12 25-0205 Screw A-E Appelez-nous -
13 35-0180 Knob Asm A-E Appelez-nous -
14 WP90767 Screw   (Replaces: 25-3092) A-E In-Stock Immediately $ 7.04

14 35-0498 Timer Knob A-E Appelez-nous -
15 35-2256 Selector Knob A-E Appelez-nous -
15 WP90767 Screw   (Replaces: 25-3092) A-E In-Stock Immediately $ 7.04

16 WP21001554 Switch Pressure   (Replaces: 35-2801) A Special Order $ 143.59

16 35-2704 Manual, U&c Insert A-E Appelez-nous -
16 WP21001554 Switch, Pressure   (Replaces: 35-3283) B-E Special Order $ 143.59

16 WP90767 Screw   (Replaces: 25-3092) A-E In-Stock Immediately $ 7.04


    View Diagram in Separate Window     Print Icon   Print Part List

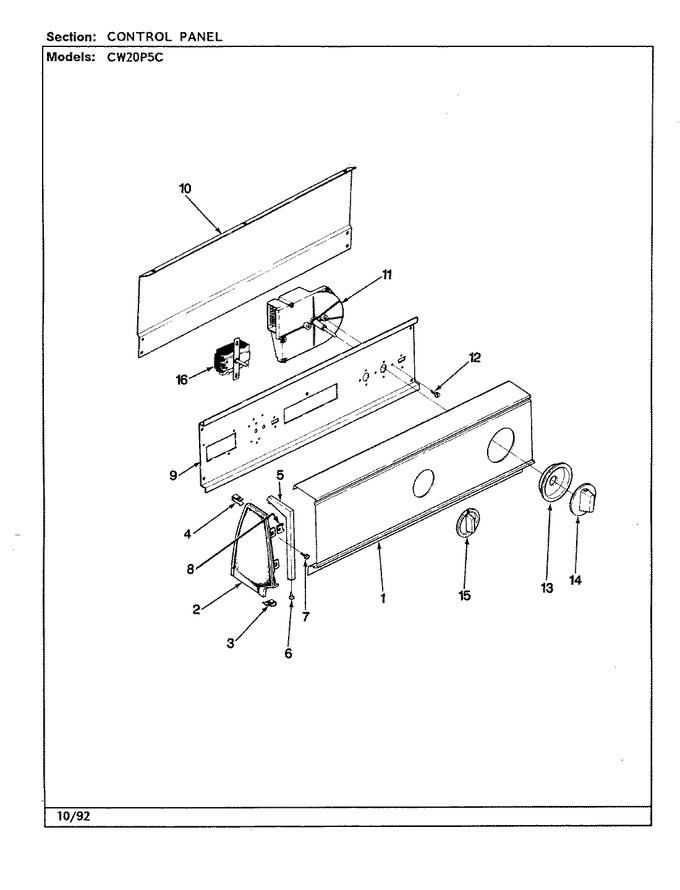

Diagram for CW20P5HC
