Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 25-7702 Speedclip, End Cap To Ctrl Pnl J Appelez-nous -
1 35-2182 Control Panel J Appelez-nous -
1 25-7793 Screw J Appelez-nous -
2 35-2488 Cap, End (lt) J Appelez-nous -
2 35-2487 Cap, End (rt) J Appelez-nous -
3 25-7697 Screw J Appelez-nous -
3 25-7851 Speedclip, End Cap To Top J Appelez-nous -
3 34-9487 Plate, Reinforcement J Appelez-nous -
4 25-7852 Speedclip, Rr Shld To End Cap J Appelez-nous -
4 WP33002917 Screw   (Replaces: 25-7435) J In-Stock Immediately $ 6.90

5 53-0278 Trim, End Cap (lt) J Appelez-nous -
5 53-0277 Trim, End Cap (rt) J Appelez-nous -
6 25-7760 Screw J Appelez-nous -
7 WP90767 Screw   (Replaces: 25-3092) J In-Stock Immediately $ 7.04

8 25-7702 Speedclip, End Cap To Ctrl Pnl J Appelez-nous -
9 53-1676 Shield, Control J Appelez-nous -
10 WP12990527 Screw, Sems   (Replaces: 25-3457) J In-Stock Immediately $ 7.15

10 35-2688 Shield, Control Panel (rear) J Appelez-nous -
10 25-7853 Retaining Ring J Appelez-nous -
10 WP90767 Screw   (Replaces: 25-3092) J In-Stock Immediately $ 7.04

11 35-2210 Timer J Appelez-nous -
12 WP489483 Screw   (Replaces: 25-0088) J Special Order $ 9.78

13 35-0180 Knob Asm J Appelez-nous -
14 35-0498 Timer Knob J Appelez-nous -
15 35-0119 Rotary Switch J Appelez-nous -
15 WP90767 Screw   (Replaces: 25-3092) J In-Stock Immediately $ 7.04

16 35-2256 Selector Knob J Appelez-nous -
17 33-8304 Manual, Use & Care J Appelez-nous -
17 WP21001554 Pressure Switch   (Replaces: 35-2145) J Special Order $ 143.59

17 WP90767 Screw   (Replaces: 25-3092) J In-Stock Immediately $ 7.04

17 35-2887-1 Manual, Use & Care J Appelez-nous -
17 WP21001554 Switch, Pressure   (Replaces: 35-3283) K Special Order $ 143.59


    View Diagram in Separate Window     Print Icon   Print Part List

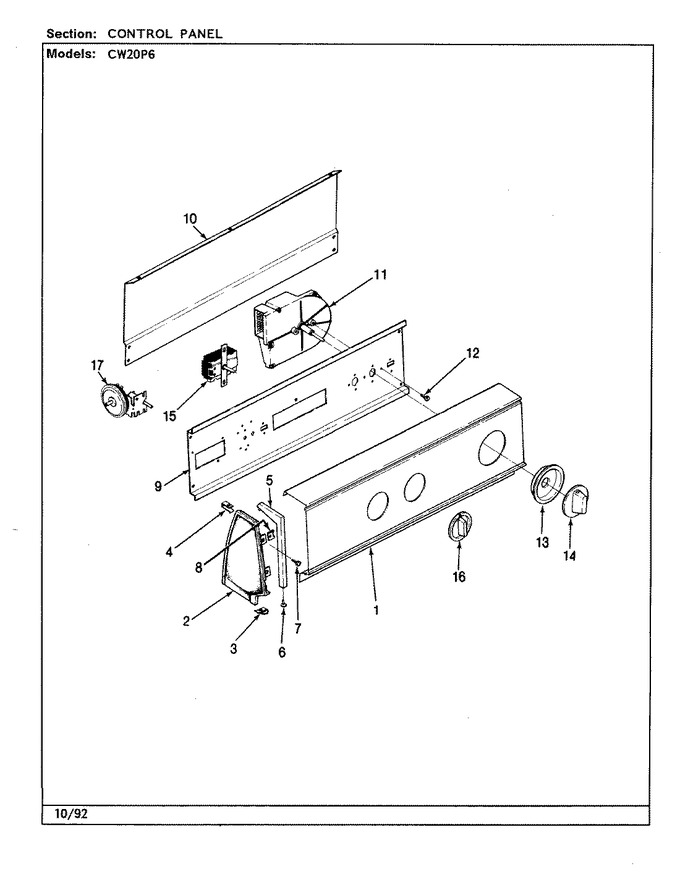

Diagram for CW20P6A
