SELECT A DIAGRAM

01 - Base & Drive


02 - Base & Drive (rev. A-e)


03 - Control Panel


04 - Control Panel (rev. A-e)


05 - Transmission


06 - Transmission (rev. A-e)


07 - Tub


08 - Tub (rev. A - E)


09 - Water Carrying


10 - Water Carrying (rev. A-e)

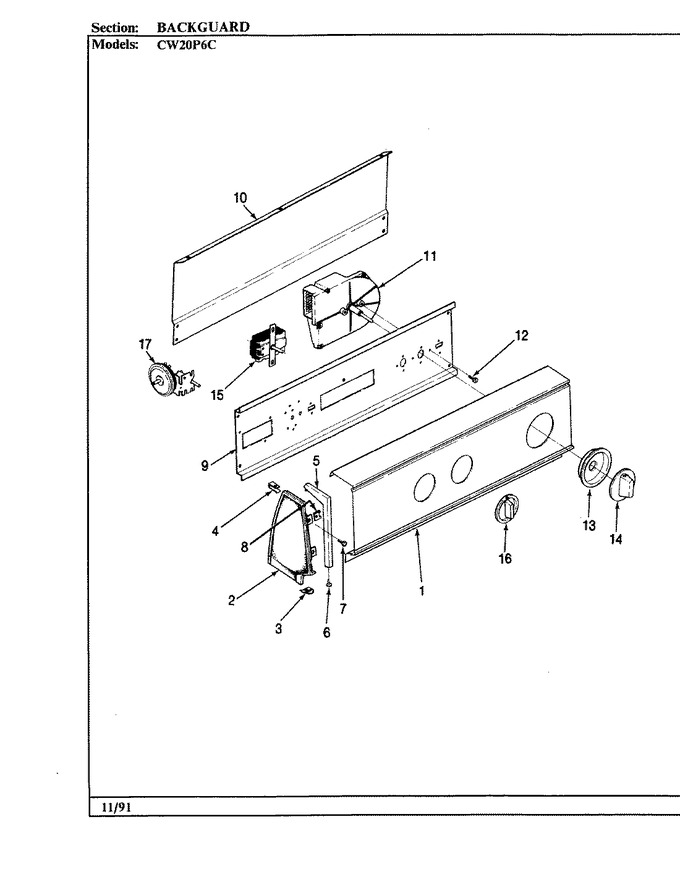

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	25-7793		Screw		Appelez-nous	-
1	35-2182		Control Panel		Appelez-nous	-
1	25-7702		Speedclip, End Cap To Ctrl Pnl		Appelez-nous	-
2	35-2487		Cap, End (rt)		Appelez-nous	-
2	35-2488		Cap, End (lt)		Appelez-nous	-
3	25-7851		Speedclip, End Cap To Top		Appelez-nous	-
3	25-7697		Screw		Appelez-nous	-
4	WP33002917		Screw   (Replaces: 25-7435)			Immediately	$ 6.90
5	53-0277		Trim, End Cap (rt)		Appelez-nous	-
5	53-0278		Trim, End Cap (lt)		Appelez-nous	-
6	25-7760		Screw		Appelez-nous	-
7	WP90767		Screw   (Replaces: 25-3092)			Immediately	$ 7.04
8	25-7702		Speedclip, End Cap To Ctrl Pnl		Appelez-nous	-
9	53-1676		Shield, Control		Appelez-nous	-
10	WP90767		Screw   (Replaces: 25-3092)			Immediately	$ 7.04
10	WP12990527		Screw, Sems   (Replaces: 25-3457)			Immediately	$ 7.15
10	35-2688		Shield, Control Panel (rear)		Appelez-nous	-
11	35-2749		Timer		Appelez-nous	-
12	WP489483		Screw   (Replaces: 25-0088)				$ 9.78
13	35-0180		Knob Asm		Appelez-nous	-
14	35-0498		Timer Knob		Appelez-nous	-
14	WP90767		Screw   (Replaces: 25-3092)			Immediately	$ 7.04
15	WP21001554		Switch Pressure   (Replaces: 35-2801)				$ 143.59
15	WP90767		Screw   (Replaces: 25-3092)			Immediately	$ 7.04
16	35-2185		Knob, Selector (blk)		Appelez-nous	-
17	35-2617		Switch 4pos Water Temp		Appelez-nous	-
NI	35-2458-3		Manual, Use & Care		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
