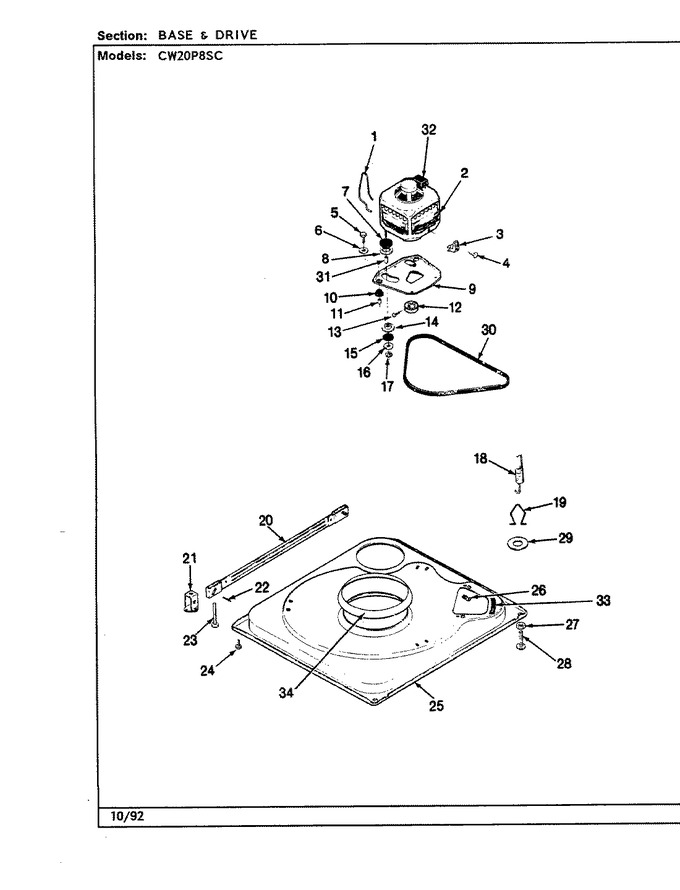

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 35-0235 | Spring, Motor Pivot | A-E |
|
- | ||||
| 2 | 35-2030 | Motor | A-E |
|
- | ||||
| 2 | LA-2002 | Motor Kit | A-E |
|
- | ||||
| 3 | 33-9945 | Slide, Foot | A-E |
|
- | ||||
| 4 | WP308544 | Screw Purchase (Replaces: 25-7418) | A-E |
|
Immediately | $ 6.98 | |||
| 5 | 25-7833 | Screw | A-E |
|
- | ||||
| 6 | 25-7834 | Washer | A-E |
|
- | ||||
| 7 | 33-9946 | Isolator, Motor | A-E |
|
$ 32.40 | ||||
| 8 | 33-9944 | Washer | A-E |
|
- | ||||
| 9 | 35-2810 | Plate, Motor | A-E |
|
- | ||||
| 10 | WP35-3646 | Isolator, Motor Plate (Replaces: 33-9941) | A-E |
|
$ 6.69 | ||||
| 11 | 25-7831 | Spacer | A-E |
|
$ 8.04 | ||||
| 12 | W10143344 | Pulley, Motor (60hz) (Replaces: 35-2124) | A-E |
|
$ 112.73 | ||||
| 13 | 25-7117 | Set Screw | A-E |
|
- | ||||
| 14 | 33-9943 | Motor Slide | A-E |
|
- | ||||
| 15 | 33-9967 | Washer, Motor Isolator | A-E |
|
$ 5.27 | ||||
| 16 | 25-7047 | Washer, Flat | A-E |
|
$ 30.39 | ||||
| 17 | WPY707702 | Nut, Motor Plate Asy To Motor (Replaces: 25-7325) | A-E |
|
Immediately | $ 6.26 | |||
| 18 | 35-3658 | Spring, Suspension | REV.E |
|
- | ||||
| 18 | 35-2681 | Spring, Suspension | A-E |
|
- | ||||
| 19 | 35-2976 | Hook, Suspension Spring | A-E |
|
- | ||||
| 20 | 35-2049 | Bar, Stabilizer (with Guide) | A-E |
|
- | ||||
| 21 | 35-2046 | Bracket, Stabilizer | A-E |
|
$ 39.94 | ||||
| 22 | 35-2052 | Pin, Stabilizer | A-E |
|
$ 6.02 | ||||
| 23 | WP22004469 | Foot, Self Stabilizer (Replaces: 35-2050) | A-E |
|
$ 14.52 | ||||
| 24 | WP489483 | Screw, No.10 Torq Limiting (Replaces: 25-7828) | A-E |
|
$ 9.78 | ||||
| 24 | 35-2039 | Pad, Foot | A-E |
|
- | ||||
| 25 | 35-2984 | Base | A-E |
|
- | ||||
| 26 | 25-7838 | Speednut | A-E |
|
- | ||||
| 27 | 25-7915 | Hex Nut | A-E |
|
- | ||||
| 28 | 35-0772 | Foot, Front | A-E |
|
- | ||||
| 28 | 35-0837 | Pad, Front Foot | A-E |
|
- | ||||
| 29 | Y25-7951 | Washer, Suspension Hook | A-E |
|
- | ||||
| 30 | WP21352320 | Belt, Drive Pulley (Replaces: 35-2320) | A-E |
|
Immediately | $ 19.29 | |||
| 31 | 25-7830 | Spacer | A-E |
|
$ 8.39 | ||||
| 32 | 33-9765 | Switch, Motor | A-E |
|
- | ||||
| 33 | 35-2065 | Pad, Motor Plate | A-E |
|
- | ||||
| 34 | WP21002026 | Snubber (Replaces: 35-2357) | A-E |
|
Immediately | $ 9.68 |
