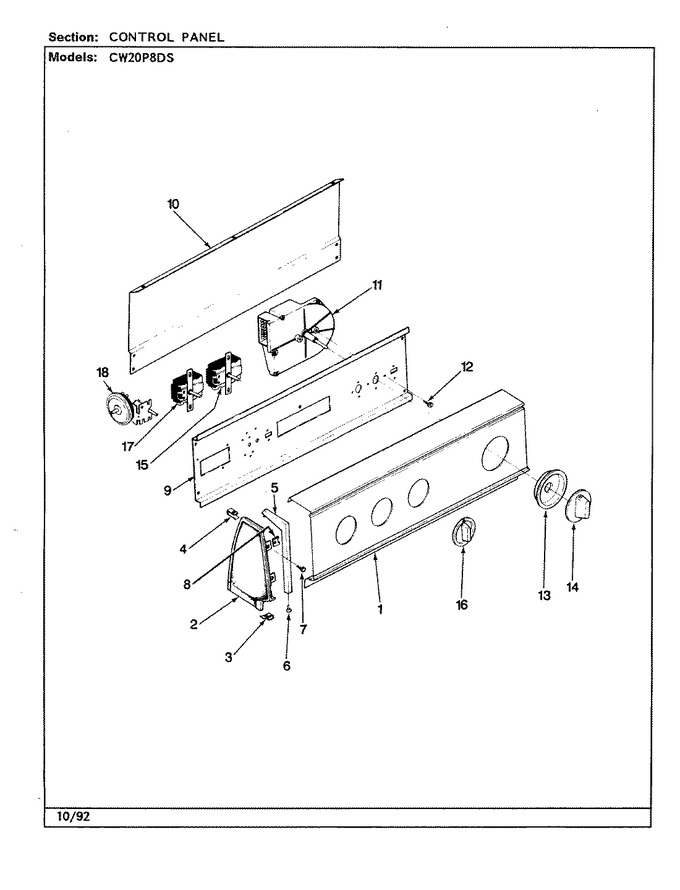

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	25-7702		Speedclip, End Cap To Ctrl Pnl		Appelez-nous	-
1	25-7793		Screw		Appelez-nous	-
1	35-3375		Control Panel		Appelez-nous	-
2	35-2668		Cap, End (rt)(wht)		Appelez-nous	-
2	35-2669		Cap, End (lt)(wht)		Appelez-nous	-
3	25-7851		Speedclip, End Cap To Top		Appelez-nous	-
3	34-9487		Plate, Reinforcement		Appelez-nous	-
3	25-7697		Screw		Appelez-nous	-
4	WP33002917		Screw   (Replaces: 25-7435)			Immediately	$ 6.90
4	25-7852		Speedclip, Rr Shld To End Cap		Appelez-nous	-
5	53-0278		Trim, End Cap (lt)		Appelez-nous	-
5	53-0277		Trim, End Cap (rt)		Appelez-nous	-
6	25-7760		Screw		Appelez-nous	-
7	WP90767		Screw   (Replaces: 25-3092)			Immediately	$ 7.04
8	25-7702		Speedclip, End Cap To Ctrl Pnl		Appelez-nous	-
9	53-1676		Shield, Control		Appelez-nous	-
10	WP90767		Screw   (Replaces: 25-3092)			Immediately	$ 7.04
10	WP12990527		Screw, Sems   (Replaces: 25-3457)			Immediately	$ 7.15
10	25-7853		Retaining Ring		Appelez-nous	-
10	35-2688		Shield, Control Panel (rear)		Appelez-nous	-
11	35-2845		Timer				$ 197.98
12	25-0205		Screw		Appelez-nous	-
13	35-0180		Knob Asm		Appelez-nous	-
14	35-0498		Timer Knob		Appelez-nous	-
15	WP90767		Screw   (Replaces: 25-3092)			Immediately	$ 7.04
15	35-2839		Switch		Appelez-nous	-
16	35-0145		Selector Knob		Appelez-nous	-
17	35-2193		Switch, Rotary Speed		Appelez-nous	-
17	WP90767		Screw   (Replaces: 25-3092)			Immediately	$ 7.04
18	WP21001554		Switch Pressure   (Replaces: 35-2801)				$ 143.59
18	WP90767		Screw   (Replaces: 25-3092)			Immediately	$ 7.04
18	WP21001554		Switch, Pressure   (Replaces: 35-3283)				$ 143.59
NI	35-2990-1		Manual, Use & Care		Appelez-nous	-
