Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 35-2342 Clothes Door Appelez-nous -
2 WP43-0057 Actuator, Door Switch   (Replaces: 43-0057) Special Order $ 73.22

2 25-7436 Nylite Washer Appelez-nous -
3 25-7438 Screw Appelez-nous -
4 WP35-2045 Pin, Hinge   (Replaces: 35-2045) In-Stock Immediately $ 18.03

4 25-7086 Washer Appelez-nous -
5 WP25-7893 Screw   (Replaces: 25-7893) Special Order $ 7.14

6 WP35-2044 Hinge, Lid   (Replaces: 35-2044) In-Stock Immediately $ 7.52

7 35-0581 Bumper, Door (lid) Appelez-nous -
8 35-2063 Bushing, Insulator Appelez-nous -
8 35-2064 Bushing, Insulating Appelez-nous -
9 25-7463 Screw Appelez-nous -
10 25-7437 Screw Appelez-nous -
11 33-8911 Door Switch Appelez-nous -
11 33-9064 Door Switch Asm Appelez-nous -
12 33-8289 Bracket Appelez-nous -
13 25-7878 Clip Appelez-nous -
14 33-9063 Door Switch Lever Appelez-nous -
15 35-2027 Top, Cabinet Appelez-nous -
15 35-2739 Top, Cabinet (wht) D Appelez-nous -
16 33-9906 Body, Bleach Dispenser Appelez-nous -
17 35-0680 Cord, Power Appelez-nous -
18 WP25-7893 Screw   (Replaces: 25-7893) Special Order $ 7.14

19 35-2846 Hinge   (Replaces: 33-7450) Special Order $ 22.94

20 33-0930 Pad, Top Hinge Appelez-nous -
21 33-6099 Clamp Appelez-nous -
22 53-0643 Pin, Locator Appelez-nous -
23 34-9701 Guide, Cabinet Appelez-nous -
24 WP3400029 Nut, Locator Pin   (Replaces: 25-0224) In-Stock Immediately $ 6.98

25 53-0643 Pin, Locator Appelez-nous -
26 35-2084 Panel, Front (wht) Appelez-nous -
27 53-0120 Clip, Front Panel Special Order $ 11.32

28 33-2653 Bumper, Cabinet Appelez-nous -
29 35-2106 Cabinet Assy. (wht) Appelez-nous -
30 33-2653 Bumper, Cabinet Appelez-nous -
31 35-2108 Shield,rear(nla,order Cab Kit) Appelez-nous -
32 WP681414 Screw   (Replaces: 25-7733) In-Stock Immediately $ 7.07


    View Diagram in Separate Window     Print Icon   Print Part List

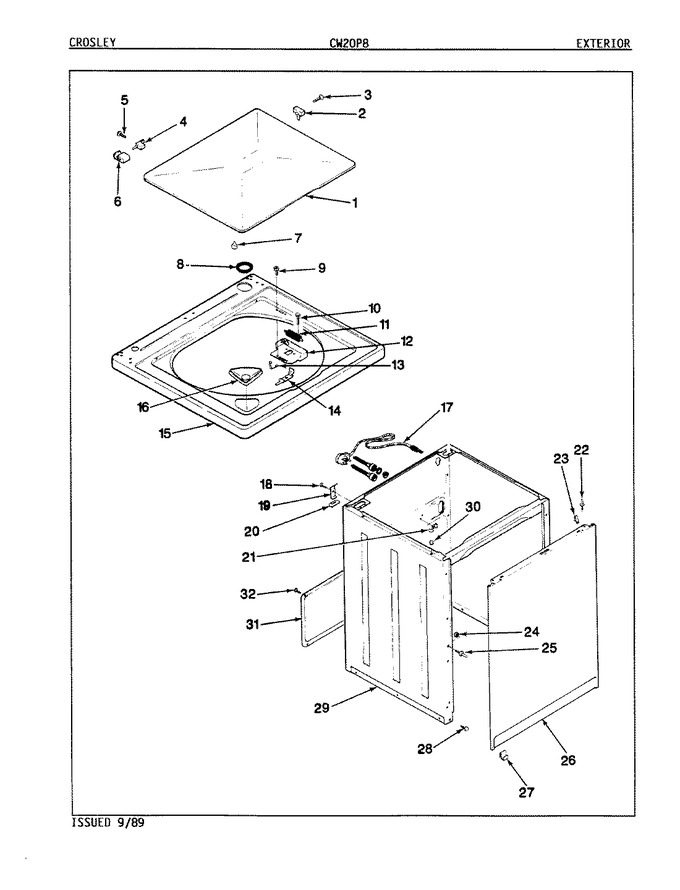

Diagram for CW20P8W
