New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|

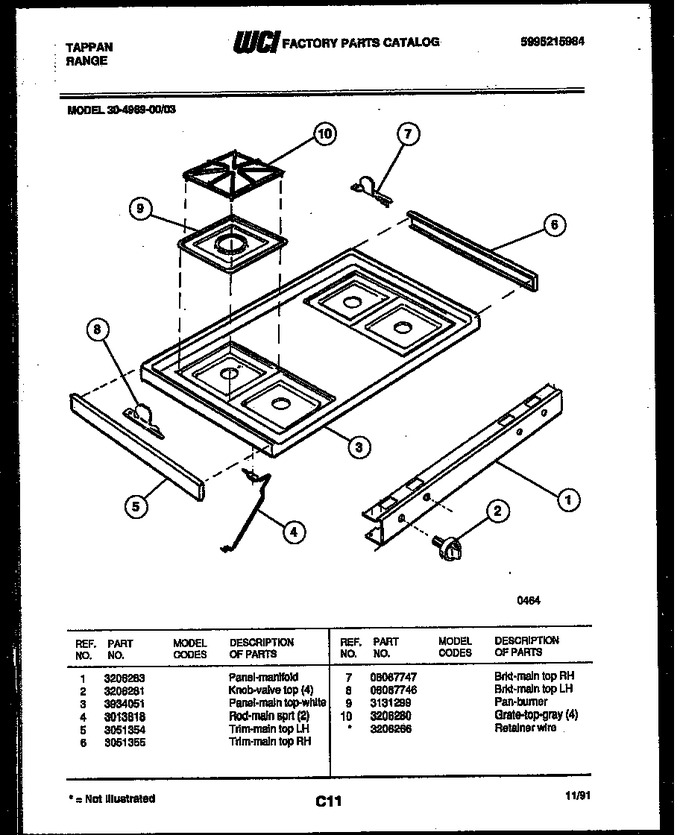

| 1 | 3206283 | Panel-manifold |
|
- | |||||
| 2 | 3206281 | Knob - Valve Top (4) |
|
- | |||||
| 3 | 3934051 | Panel - Main Top - White |
|
- | |||||
| 4 | 3013818 | Rod - Main Sprt (2) |
|
- | |||||
| 5 | 3051354 | Trim, Main Top, Lh |
|
- | |||||
| 6 | 3051355 | Trim, Main Top (rh) |
|
- | |||||
| 7 | 08067747 | Brkt, Main Top (rh) |
|
- | |||||
| 8 | 08067746 | Brkt, Main Top (lh) |
|
- | |||||
| 9 | 3131299 | Pan Burner |
|
- | |||||
| 10 | 3206280 | Grate-top-gray (4) |
|
- | |||||
| *62743 | 3206266 | Retainer Wire |
|
- |
