SELECT A DIAGRAM

01 - Base & Drive (cw20p8xsc)(rev. A-e)


02 - Base (orig-cw20p8xsc)


03 - Cabinet (orig-cw20p8xsc)


04 - Center Post (orig-cw20p8xsc)


05 - Control Panel (orig-cw20p8xsc)


06 - Control Panel (rev. A-e)(cw20p8xsc)


07 - Exterior (cw20p8xsc)(rev. A-e)


08 - Motor & Pump (orig-cw20p8xsc)


09 - Top (orig-cw20p8xsc)


10 - Transmission & Related Parts (rev. A-e)


11 - Transmission (orig-cw20pxsc)


12 - Tub (cw20p8xsc)(rev. A-e)


13 - Tub (orig-cw20p8xsc)


14 - Water Carrying (cw20p8xsc)(rev. A-e)

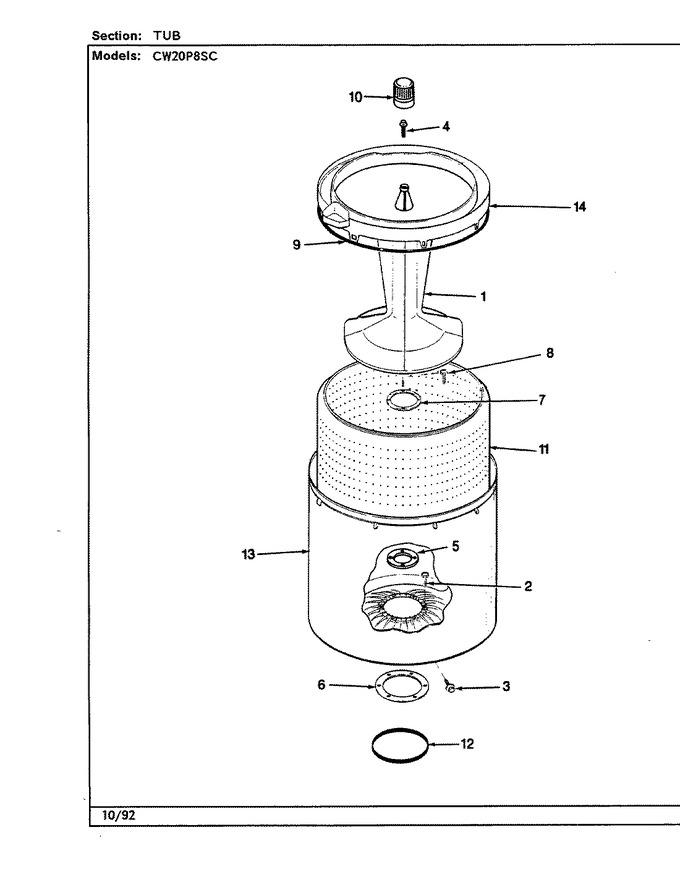

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	35-3580		Agitator	REV.E	Appelez-nous	-
1	35-2717		Agitator		Appelez-nous	-
2	25-7947		Screw Shoulder		Appelez-nous	-
3	WP22002933		Screw   (Replaces: 25-7953)				$ 6.91
4	WPW10309247		Screw, Agitator Retention   (Replaces: 25-7948)				$ 32.57
5	35-2980		Gasket		Appelez-nous	-
5	35-3685		Gasket, Basket To Centerpost	REV.E			$ 36.70
6	35-3686		Gasket, Tub To Housing				$ 5.85
6	35-2979		Gasket, Tub/hsg (seal)		Appelez-nous	-
7	35-3014		Gasket & Reinf. Plate Assy		Appelez-nous	-
8	25-7783		Screw		Appelez-nous	-
9	35-2328		Seal, Tub Top				$ 49.43
10	35-2733		Cap, Agitator		Appelez-nous	-
11	35-3016		Basket Assy		Appelez-nous	-
12	35-2978		Seal, Tub/housing				$ 5.85
13	35-2952		Tub Assy		Appelez-nous	-
13	35-3700		Tub Assembly (plastic)	REV.E			$ 236.85
14	35-3578		Top, Tub	REV.E	Appelez-nous	-
14	35-2262		Shield, Tub Top		Appelez-nous	-
14	35-2034		Top, Tub		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
