SELECT A DIAGRAM

01 - Cover


03 - Backguard


05 - Burner


07 - Body


09 - Top/drawer


11 - Door

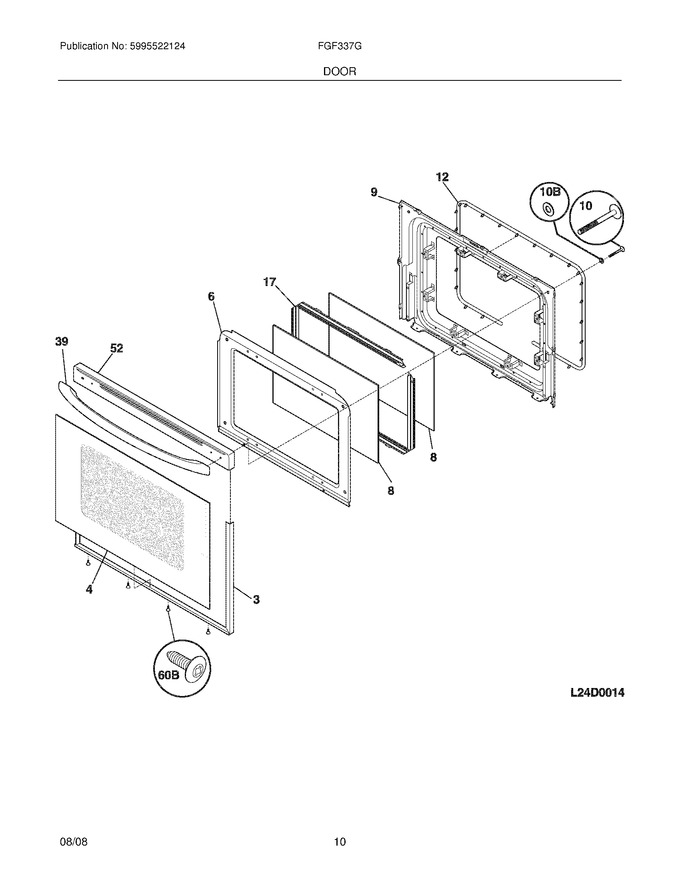

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
3	5303935191		Trim Kit-door,3 Sided ,black ,w/tape And Foil				$ 141.75
4	316202820		Glass-oven Door,black ,outer		Appelez-nous	-
6	316222711		Shield,wool ,black ,oven Door				$ 47.90
8	5304503232		Glass,oven Door ,clear ,heat Barrier   (Replaces: 316237100)				$ 116.95
9	316230623		Liner,oven Door				$ 165.90
10	316278700		Screw,wafer Head ,10-14 X 1 3/8 ,handle Mtg			Immediately	$ 27.50
12	316239700		Seal,oven Door			Immediately	$ 152.43
17	316117701		Spacer,door Glass ,(2)				$ 53.66
39	316270200		Handle,door ,black				$ 136.40
52	316491201		Cap,door Trim ,black   (Replaces: 316468601)				$ 99.94
10B	316008401		Washer,3/4 Od X 1/4 Id ,steel				$ 11.34
60B	316021109		Screw,8-18 X 0.5 ,black   (Replaces: 316021110)			Immediately	$ 27.50
NI	316433600		Label,anti-tip		Appelez-nous	-
NI	5303285179		Screw,wafer Head `8-32t X 0.500 ,black				$ 13.46
NI	316021109		Screw`8-18 X 0.5 ,chrome			Immediately	$ 27.50
NI	5303271648		Screw,wafer Hd Sq Dr ,8-18ab X 0.5			Immediately	$ 13.46

    View Diagram in Separate Window       Print Part List
