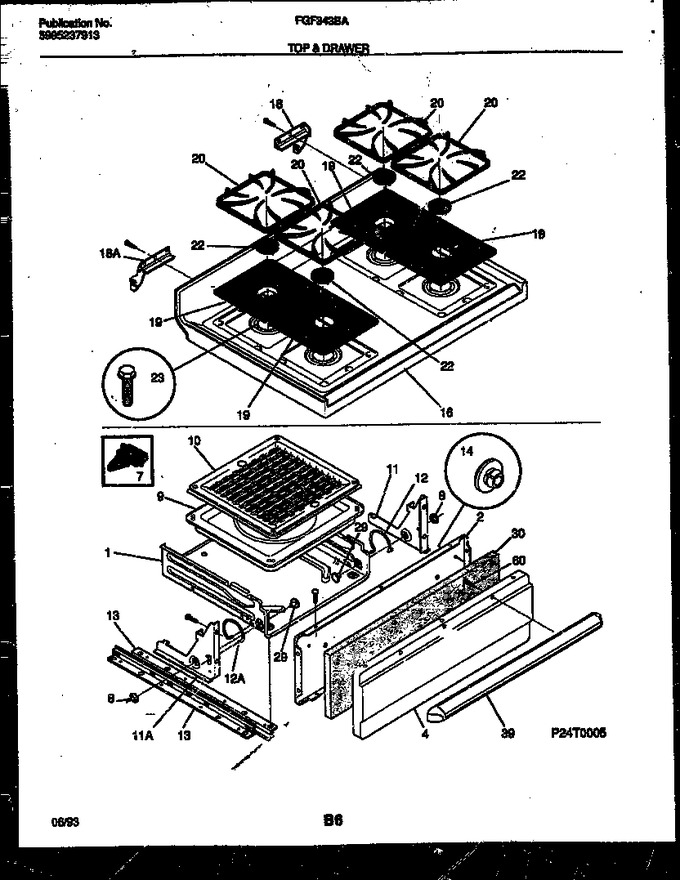

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 3018608 | Drawer-broiler |
|
- | |||||
| 2 | 3202803 | Liner, Broiler Door |
|
- | |||||
| 4 | 316056202 | Panel-drawer,almond |
|
- | |||||
| 7 | 3018610 | Glide-broiler |
|
$ 29.40 | |||||
| 8 | 3131386 | Nut, Push-on, (2) |
|
- | |||||
| 9 | 5303013568 | Pan-broiler |
|
- | |||||
| 10 | 5303131356 | Insert-broiler Pan |
|
- | |||||
| 11 | 3018860 | Bracket-hinge, Broiler, Rh |
|
- | |||||
| 12 | 3018619 | Spring-broiler, Rh |
|
- | |||||
| 13 | 3131153 | Channel-broiler |
|
- | |||||
| 14 | 3206216 | Plug-button, Glide |
|
- | |||||
| 16 | 5303285701 | Main Top (almond) |
|
- | |||||
| 18 | 5303273062 | Hinge-main Top (rh) |
|
- | |||||
| 19 | 316011401 | Pan-burner |
|
$ 20.58 | |||||
| 20 | 316025400 | Grate, (4) |
|
- | |||||
| 22 | 316011001 | Cap-burner, Cast, Black, (4) |
|
- | |||||
| 23 | 5303281650 | Screw-burner Mtg, Hex Washer Head, M 3 X 10 |
|
- | |||||
| 29 | 3018614 | Pin-hinge |
|
- | |||||
| 30 | 5303131258 | Insulation, Broiler Drawer |
|
- | |||||
| 39 | 316026100 | Handle-drawer, Black |
|
- | |||||
| 60 | 5303288574 | Screw, Truss Head, 8-10 X 3/8 |
|
- | |||||
| 11A | 3200673 | Bracket-hinge, Broiler, Lh, (4) |
|
- | |||||
| 12A | 3018618 | Spring-broiler, Lh |
|
- | |||||
| 16A | 5303271891 | Gusset-top Mtg, Rh (non-illustrated) |
|
- | |||||
| 16B | 5303271892 | Gusset-top Mtg, Lh (non-illustrated) |
|
- | |||||
| 18A | 5303273063 | Hinge-main Top (lh) |
|
$ 48.41 | |||||
| 18B | 5303288567 | Screw, 8-18 X 3/8, (4) (non-illustrated) |
|
- | |||||
| 4A | 08067785 | Screw, Hex Washer Head, 8-18(ab) X 1/2 (non-illustrated) |
|
- |
