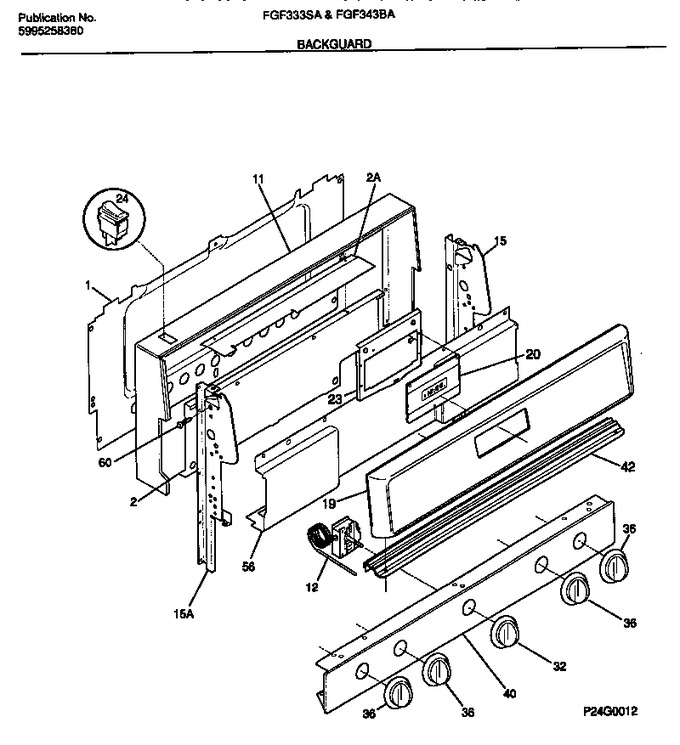

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	316028701		Shield-backguard, Rear Wall		Appelez-nous	-
2	316051601		Shield-backguard, Inner		Appelez-nous	-
11	316061810		Trim-wrapper, Black		Appelez-nous	-
12	316032411		Thermostat-oven   (Replaces: 5303271464)			Immediately	$ 165.14
15	316023114		Support-backguard, Rh		Appelez-nous	-
19	316024416		Panel-control, Metal		Appelez-nous	-
20	316045103		Clock/timer, Electronic		Appelez-nous	-
23	316033203		Bracket-clock Mtg		Appelez-nous	-
24	5304527841		Switch-light/lamp, Rocker, Black, (2)   (Replaces: 316005602)			Immediately	$ 11.38
32	316053600		Knob-thermostat		Appelez-nous	-
36	316049300		Knob-top Valve, (4)		Appelez-nous	-
40	316009267		Panel-manifold		Appelez-nous	-
42	316055200		Trim-vent		Appelez-nous	-
56	316014601		Deflector-flue		Appelez-nous	-
60	5303288574		Screw, Truss Head, 8-10 X 3/8		Appelez-nous	-
*05934	5303281584		Screw, Truss Head, 8-18 X 1/2		Appelez-nous	-
15A	316023115		Support-backguard, Lh		Appelez-nous	-
2A	316053801		Shield-backguard, Inner Top		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
