SELECT A DIAGRAM
02 - Backguard
03 - Cooktop Parts
04 - Drawer Parts
05 - Door Parts
06 - Burner, Manifold And Gas Control
07 - Body Parts
SELECT A DIAGRAM
New Model Search:

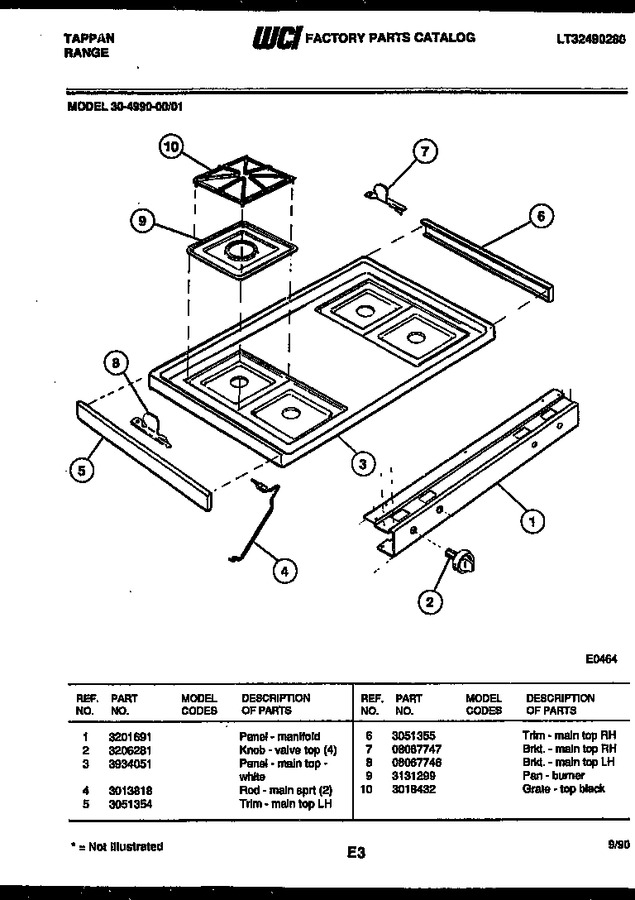

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 3201691 | Panel - Manifold |
|
- | |||||
| 2 | 3206281 | Knob - Valve Top (4) |
|
- | |||||
| 3 | 3934051 | Panel - Main Top - White |
|
- | |||||
| 4 | 3013818 | Rod - Main Sprt (2) |
|
- | |||||
| 5 | 3051354 | Trim, Main Top, Lh |
|
- | |||||
| 6 | 3051355 | Trim, Main Top (rh) |
|
- | |||||
| 7 | 08067747 | Brkt, Main Top (rh) |
|
- | |||||
| 8 | 08067746 | Brkt, Main Top (lh) |
|
- | |||||
| 9 | 3131299 | Pan Burner |
|
- | |||||
| 10 | 3018432 | Grate - Top Black |
|
- |
