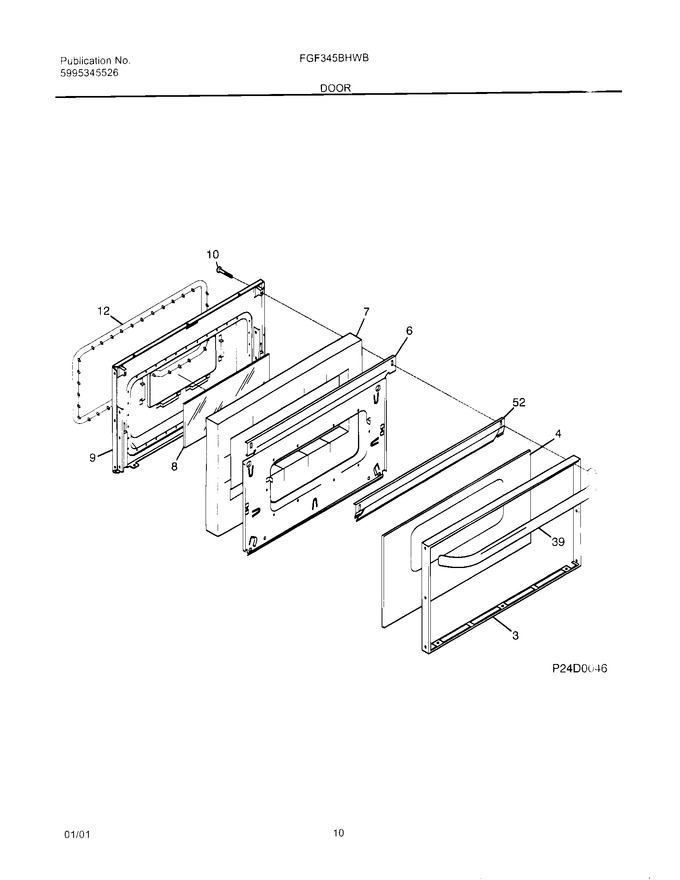

11 - Door


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
3	316067802		Trim,oven Door ,black		Appelez-nous	-
4	316089000		Glass-oven Door,black ,outer		Appelez-nous	-
6	316088403		Shield-wool		Appelez-nous	-
7	316439802		Insulation,oven Door   (Replaces: 316076401)			Immediately	$ 192.78
8	316088600		Glass,oven Door ,inner				$ 85.52
9	316066610		Liner-oven Door		Appelez-nous	-
10	5303280308		Screw-handle Mtg, Wafer Head, 10-24(t) X 2				$ 16.96
12	5303202011		Seal-oven Door, Non Self-clean				$ 166.84
39	5304529996		Handle-door, Black, Oven   (Replaces: 316091114)				$ 156.11
52	316081303		Shield-oven Door, Black, Top		Appelez-nous	-
NI	5303280311		Screw,wafer Hd Sq Dr ,10-32 X 0.312 ,(2)				$ 6.62
NI	316008401		Washer,3/4 Od X 1/4 Id ,steel				$ 11.34
NI	316021109		Screw,semi Gimlet ,8-18 X 0.500 ,black   (Replaces: 316021110)			Immediately	$ 27.50
NI	5303212671		Screw, Cr Pan Hd Sems, 8-32bp X 1.00		Appelez-nous	-
NI	5303271648		Screw,wafer Hd Sq Dr ,8-18ab X 1/2 ,burner Box			Immediately	$ 13.46
