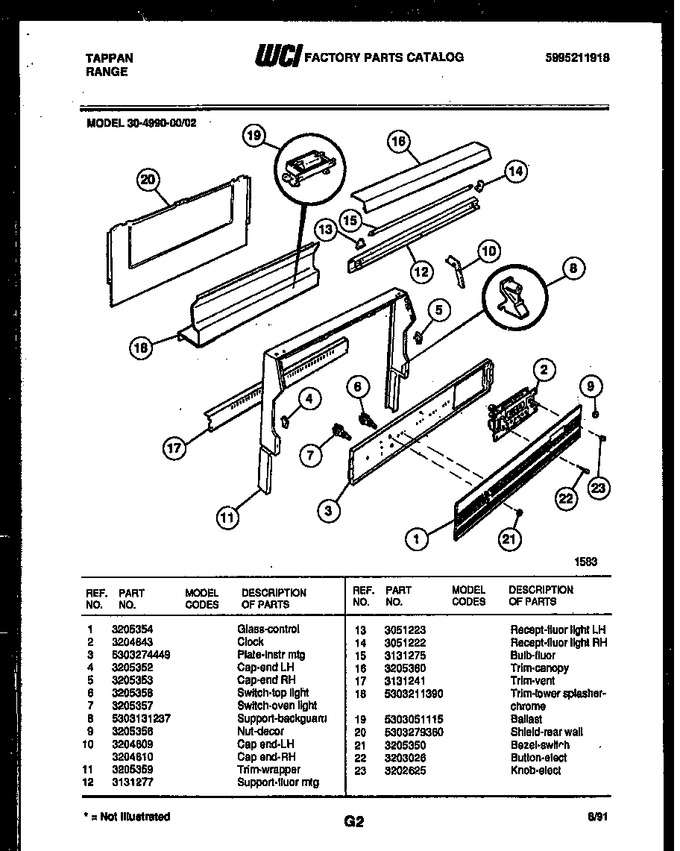

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 3205354 | Glass-control |
|
- | |||||
| 2 | 3204643 | Clock |
|
- | |||||
| 3 | 5303274449 | Plate-instr Mtg |
|
- | |||||
| 4 | 3205352 | Cap - End Lh |
|
- | |||||
| 5 | 3205353 | Cap - End Rh |
|
- | |||||
| 6 | 3205358 | Switch - Top Light |
|
- | |||||
| 7 | 3205357 | Switch-oven Light |
|
- | |||||
| 8 | 5303131237 | Support, Backguard |
|
- | |||||
| 9 | 3205356 | Nut - Decor. |
|
- | |||||
| 10 | 3204609 | Cap End - Lh |
|
- | |||||
| 11 | 3205359 | Trim - Wrapper |
|
- | |||||
| 12 | 3131277 | Support - Fluor Mtg |
|
- | |||||
| 13 | 3051223 | Recept-fluor Light Lh |
|
- | |||||
| 14 | 3051222 | Recept-fluor Light Rh |
|
- | |||||
| 15 | 3131275 | Bulb-fluor |
|
$ 49.40 | |||||
| 16 | 3205360 | Trim - Canopy |
|
- | |||||
| 17 | 3131241 | Trim-vent |
|
- | |||||
| 18 | 5303211390 | Trim - Lower Splasher - Chrome |
|
- | |||||
| 19 | 5303051115 | Ballast |
|
- | |||||
| 20 | 5303279360 | Shield-rear Wall |
|
- | |||||
| 21 | 3205350 | Bezel - Switch |
|
- | |||||
| 22 | 3203026 | Button - Elect |
|
- | |||||
| 23 | 3202625 | Knob - Elect |
|
- | |||||
| 10A | 3204610 | Cap End - Rh |
|
- |
