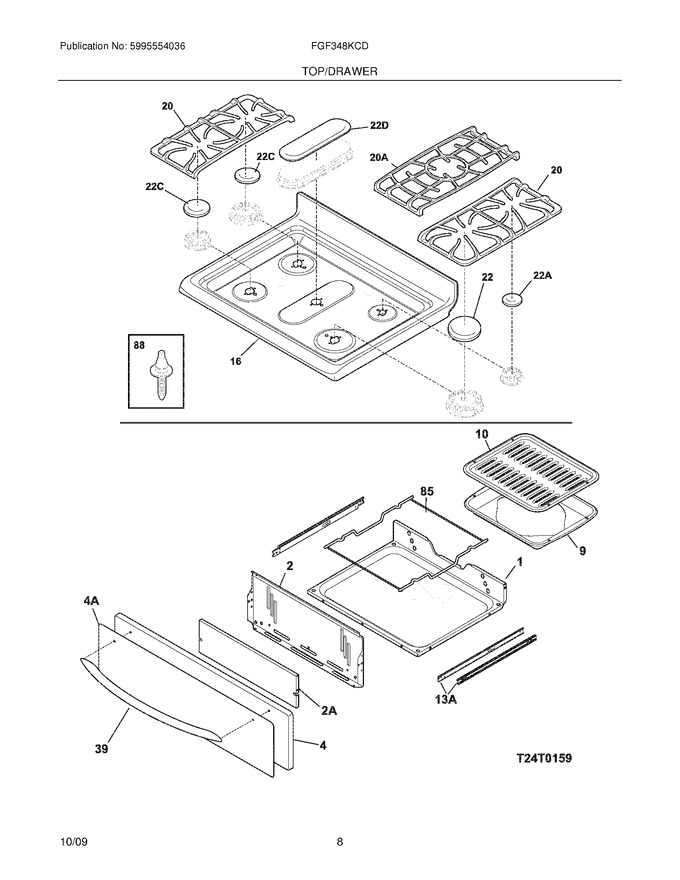

09 - Top/drawer


11 - Door


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	316110201		Carriage,low Broil				$ 232.57
2	316236401		Liner,low Broil				$ 119.96
4	316231226		Panel,drawer ,black		Appelez-nous	-
9	316081902		Pan,broiler ,slate Blue				$ 83.42
10	316082002		Insert,broiler Pan ,slate Blue				$ 81.14
16	316469645		Maintop Panel,black		Appelez-nous	-
20	316499806		Grate,black ,(2)   (Replaces: 316499502)				$ 354.16
22	316438704		Cap,14k Burner ,black				$ 69.03
39	316246105		Handle,door/drawer ,stainless   (Replaces: 316246100)				$ 145.31
85	316115600		Rack-low Broil				$ 105.47
88	316099500		Pin,guide ,(2)				$ 6.53
13A	316534200		Glide-low Broil, Inner				$ 42.75
20A	316499602		Grate,black ,center				$ 248.85
22A	5304508441		Cap,5k Burner ,black   (Replaces: 316438304)			Immediately	$ 35.04
22C	316527704		Cap,9.5k Burner ,black ,medium ,(2)				$ 52.24
22D	316532103		Cap,9.5k Burner ,oval ,black ,center				$ 124.85
2A	316541500		Shield,broiler				$ 61.37
4A	316444802		Overlay,drawer Panel ,stainless		Appelez-nous	-
NI	5303288572		Screw-handle Mtg		Appelez-nous	-
NI	316021109		Screw,hex Head Cup Pt ,8-18 X 0.375 ,black   (Replaces: 316021105)			Immediately	$ 27.50
NI	316021109		Screw,8-18 X 0.5 ,black   (Replaces: 316021110)			Immediately	$ 27.50
NI	316021120		Screw,shoulder Head ,8-18 X 5/8 ,(2) ,square Drive				$ 13.28
