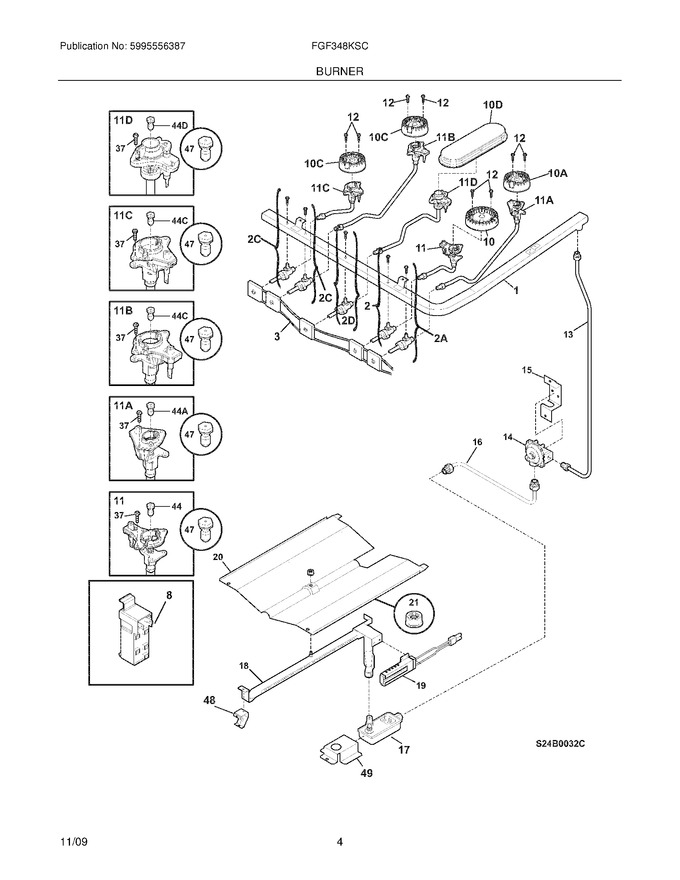

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
2	5303935307		Valve,14k Top Burner ,w/mtg Screw				$ 90.72
10	316438600		Burner,sealed ,14k			Immediately	$ 79.80
12	316540900		Screw,burner ,head Mtg ,(8)			Immediately	$ 15.17
15	316091600		Bracket-regulator				$ 73.56
20	316496001		Baffle,oven Burner				$ 78.33
21	154079601		Nut,hex Head Sems   (Replaces: 5303013272)				$ 0.41
37	316240600		Screw,assy Mtg ,(8) ,ignitor/orifice			Immediately	$ 12.13
44	316527511		Orifice,top Burner ,14k				$ 19.85
47	GRLP3		Lp Conversion Kit,w/instructions				$ 57.11
48	3018603		Bracket,support ,oven Burner		Appelez-nous	-
49	316416300		Bracket,safety Valve		Appelez-nous	-
11B	316536602		Ignitor/orifice Assy.,top Burner ,left Front,9.5k ,w/holder ,tube				$ 132.62
11C	316536600		Ignitor/orifice Assy.,top Burner ,left Rear,9.5k ,w/holder ,tube				$ 124.27
44A	316527504		Orifice,top Burner ,5k				$ 22.68
44C	316527500		Orifice,top Burner ,9.5k				$ 21.40
44D	316237902		Orifice,top Burner ,9.5k				$ 65.22
F1	316551202		Manifold,pipe				$ 132.77
F10A	316438200		Burner,sealed ,5k			Immediately	$ 56.70
F10C	316558300		Burner,sealed ,9.5k			Immediately	$ 52.45
F10D	316532001		Burner,sealed ,oval ,9.5k				$ 288.60
F11	316536614		Ignitor/orifice Assy.,top Burner ,right Front,14k ,w/holder ,tube				$ 112.27
F11A	316536610		Ignitor/orifice Assy.,top Burner ,right Rear,5k ,w/holder ,tube			Immediately	$ 92.38
F11D	316532601		Ignitor/orifice Assy.,top Burner ,center,9.5k ,w/holder-tube				$ 123.62
F13	316207000		Tube,3/8 `aluminum ,rgltr To Manf ,with Fittings				$ 96.55
F14	5304521339		Regulator,pressure   (Replaces: 316416700)			Immediately	$ 105.42
F16	316065006		Tube-valve To Rgltr,3/8   (Replaces: 316436500)				$ 122.09
F17	3203459		Valve-safety				$ 303.64
F18	316114300		Burner,oven				$ 169.88
F19	5304509706		Ignitor,oven Kit ,w/nut & Instr   (Replaces: 316489402)			Immediately	$ 189.59
F2A	5303935308		Valve,5k Top Burner ,w/mtg Screw				$ 70.88
F2C	5303935305		Valve,9.5k Burner ,w/mtg Screw			Immediately	$ 77.26
F2D	5303935309		Valve-top Burner,tortilla				$ 82.22
F3	316219025		Wiring Harness,w/igntr Switch		Appelez-nous	-
F8	316280800		Module,spark				$ 89.51
FNI	316526902		Harness,ignitor				$ 84.63
NI	316215600		Screw,valve Mtg. ,1/4 - 20			Immediately	$ 14.18
NI	316443200		Bracket-support		Appelez-nous	-
NI	316566900		Sleeve,insulator		Appelez-nous	-
NI	316417518		Instructions,lp Conversion		Appelez-nous	-
NI	316021104		Screw`hex ,8-18 X 3/8 `nick `(3) `regulator Brkt				$ 7.79
NI	316021109		Screw,hex Head Cup Pt ,8-18 X 0.375 ,black   (Replaces: 316021105)			Immediately	$ 27.50
NI	316001017		Screw,ground Wire   (Replaces: 316001003)				$ 3.03
NI	316089500		Screw, 10-16 X .486				$ 13.46
NI	316021109		Screw`8-18 X 0.5 ,chrome			Immediately	$ 27.50
NI	5303271648		Screw,wafer Hd Sq Dr ,8-18ab X 0.5			Immediately	$ 13.46
