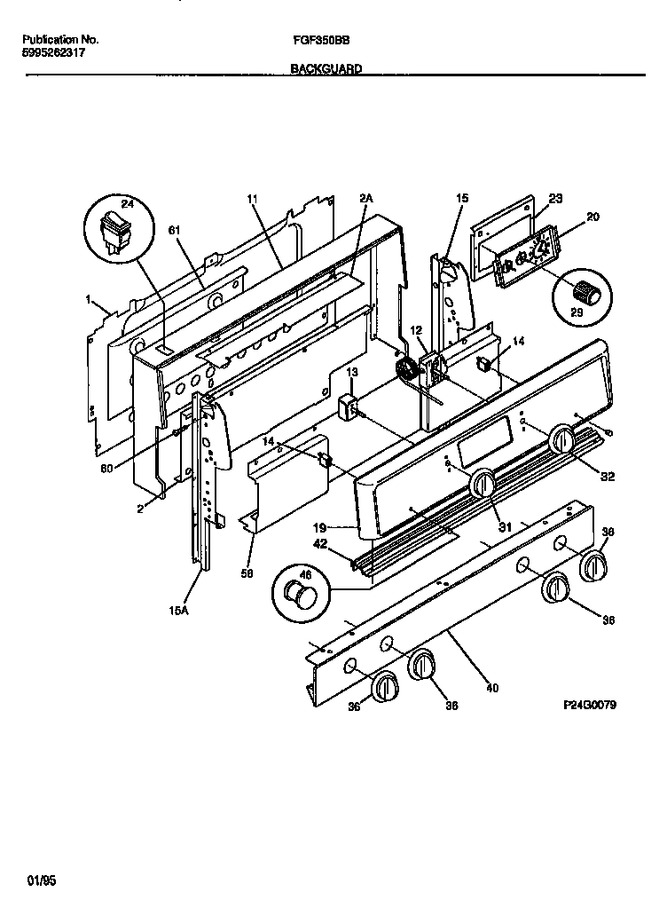

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	316028701		Shield-backguard, Rear Wall		Appelez-nous	-
2	316051601		Shield-backguard, Inner		Appelez-nous	-
11	316061810		Trim-wrapper, Black		Appelez-nous	-
12	316028600		Thermostat-oven		Appelez-nous	-
13	316073300		Switch-selector				$ 154.25
14	316022500		Light/lamp, Indicator, Red,250 V,(2)			Immediately	$ 53.57
15	316023114		Support-backguard, Rh		Appelez-nous	-
19	316024444		Panel, Control, Metal		Appelez-nous	-
20	316017404		Clock/timer, Analog 3 Stem		Appelez-nous	-
23	316033203		Bracket-clock Mtg		Appelez-nous	-
24	5304527841		Switch-light/lamp, Rocker, Black, (2)   (Replaces: 316005602)			Immediately	$ 11.38
29	316029000		Knob-clock		Appelez-nous	-
31	316054916		Knob-selector		Appelez-nous	-
32	316054915		Knob-thermostat		Appelez-nous	-
36	316049300		Knob-top Valve, (4)		Appelez-nous	-
40	316009268		Panel-manifold		Appelez-nous	-
42	316055200		Trim-vent		Appelez-nous	-
46	316040201		Lens-light/lamp, Indicator, Red		Appelez-nous	-
56	316074902		Deflector-flue, Black		Appelez-nous	-
60	5303288574		Screw, Truss Head, 8-10 X 3/8		Appelez-nous	-
61	316055001		Shield, Bkgd Flue		Appelez-nous	-
*61280	316001437		Harness, Wiring Backguard		Appelez-nous	-
*61281	316021109		Screw,hex, 8-18 X 3/8, Back\bodyside   (Replaces: 316021105)			Immediately	$ 27.50
*61282	5303281584		Screw, Truss Head, 8-18 X 1/2		Appelez-nous	-
15A	316023115		Support-backguard, Lh		Appelez-nous	-
2A	316053801		Shield-backguard, Inner Top		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
