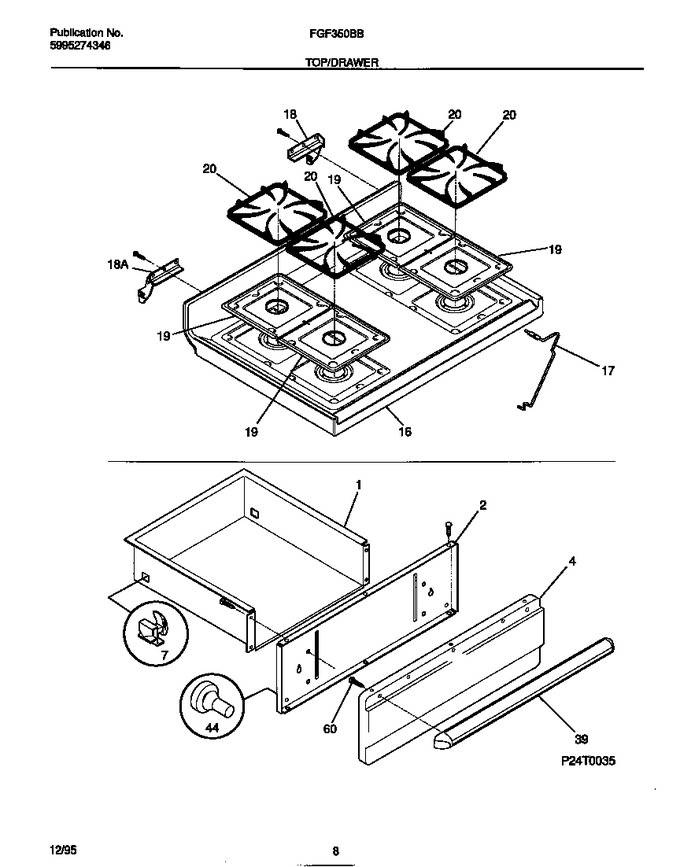

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	316011501		Drawer-utility		Appelez-nous	-
2	3131975		Shield-panel		Appelez-nous	-
4	08067785		Screw, Hex Washer Head, 8-18(ab) X 1/2 (not Illustrated)		Appelez-nous	-
4	316056206		Panel,drawer ,almond		Appelez-nous	-
7	3051163		Glide,drawer ,rear			Immediately	$ 19.41
16	5303285572		Main Top, Almond		Appelez-nous	-
17	316057601		Rod-maintop Support				$ 64.49
18	5303273063		Hinge-main Top (lh)				$ 48.41
18	5303273062		Hinge-main Top (rh)		Appelez-nous	-
19	316011402		Pan-burner,(4)				$ 50.48
20	316025400		Grate, (4)		Appelez-nous	-
39	316026100		Handle-drawer, Black		Appelez-nous	-
44	3131903		Bumper				$ 55.36
60	5303288574		Screw, Truss Head, 8-10 X 3/8		Appelez-nous	-
*50965	3203618		Rivet-pop, Waring-plate		Appelez-nous	-
*50966	5303281584		Screw, Truss Head, 8-18 X 1/2		Appelez-nous	-
*50967	5303288567		Screw, 8-18 X 3/8, (4)		Appelez-nous	-
