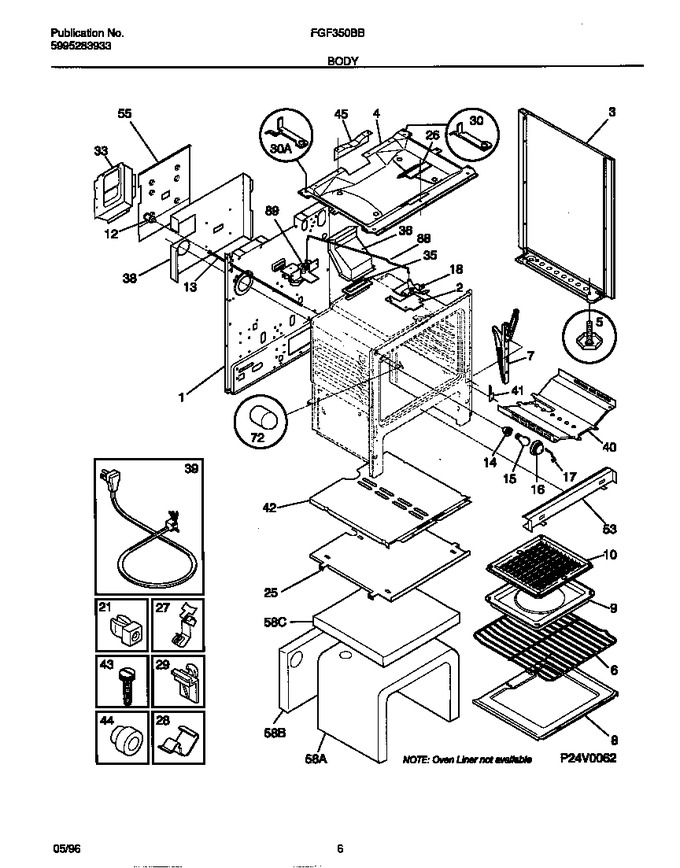

SELECT A DIAGRAM

01 - Cover


02 - Backguard


03 - Burner


04 - Body


05 - Top/drawer


06 - Door


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	316029410		Back-main		Appelez-nous	-
2	3131314		Shield-oven-top		Appelez-nous	-
3	316081007		Panel-bodyside, Almond, Lh (not Illustrated)		Appelez-nous	-
3	316081006		Panel, Bodyside, Almond, Rh		Appelez-nous	-
4	3011597		Burner Box		Appelez-nous	-
6	5304531722		Rack-oven   (Replaces: 316067901)			Immediately	$ 51.05
9	316073800		Pan-broiler		Appelez-nous	-
10	3205234		Insert, Broiler Pan		Appelez-nous	-
12	316027701		Switch-oven Light, Door Frame		Appelez-nous	-
13	316026800		Rod-light Switch/door				$ 36.86
14	3014073		Socket-light/lamp, Oven		Appelez-nous	-
15	40A15		Light Bulb/lamp   (Replaces: 5303013071)			Immediately	$ 1.98
16	5304524341		Glass - Oven Light Lens   (Replaces: 08011086)			Immediately	$ 14.18
17	316087500		Retainer,lens				$ 56.70
18	316036300		Latch-door		Appelez-nous	-
21	3014099		Spacer-bodyside, (8)				$ 3.62
25	3131313		Shield-heat-lower		Appelez-nous	-
26	08067757		Cover Plate		Appelez-nous	-
27	5303284616		Clip-thermo Bulb				$ 9.86
28	3011813		Clip-wire				$ 14.79
29	3051162		Glide-drawer, Front			Immediately	$ 8.22
30	5303283575		Bracket-hinge, Main Top, Lh		Appelez-nous	-
30	5303283574		Bracket-hinge, Main Top Rh		Appelez-nous	-
33	316014401		Shield, Rear Wall		Appelez-nous	-
35	08067965		Gasket-flue		Appelez-nous	-
36	5303272844		Flue		Appelez-nous	-
38	316051701		Shield-heat		Appelez-nous	-
41	3131570		Cover Hinge Cutout				$ 7.35
42	5303270104		Shield-bake-burner		Appelez-nous	-
43	316282700		Screw-oven Bottom, 8-18 X 1.438   (Replaces: 3131732)				$ 9.93
44	3131903		Bumper				$ 55.36
45	08068018		Shield-wire		Appelez-nous	-
55	316052601		Shield-flue		Appelez-nous	-
58	3200833		Insulation, Oven Wrapper		Appelez-nous	-
58	3131304		Insulation, Oven Top		Appelez-nous	-
58	316054200		Insulation, Oven Back		Appelez-nous	-
72	5303285692		Cover-light/switch Rod		Appelez-nous	-
88	316026400		Rod-latch, Auto				$ 21.79
89	316028100		Motor-latch/lock		Appelez-nous	-
*70722	316519700		Screw, Cup Pt, 8-18 X 3/8   (Replaces: 316021108)				$ 10.02
*70723	316001630		Harness, Wiring, Main		Appelez-nous	-
39A	5304534377		Cord-electric Power   (Replaces: 3202006)				$ 26.85
39B	08067961		Fastener-power Cord		Appelez-nous	-
3A	3200834		Shield, Heat, Body Side (not Illustrated)		Appelez-nous	-
3B	08067992		Shield, Insulation, Galv Steel (not Illustrated)		Appelez-nous	-
40A	3200836		Shield-heat Baffle		Appelez-nous	-
40B	5303288570		Screw-heat Shield, Hd Shldr Sqdr, 8-18 X 1/2 (not Illustrated)		Appelez-nous	-
53A	5303271047		Shield-main Front		Appelez-nous	-
53B	08067973		Insulation, Main Front (not Illustrated)				$ 51.74
5A	5303203397		Screw-leveling				$ 14.49
5B	3934058		Anti, Tip Kit (not-illustrated)				$ 98.75
5C	316116000		Screw, Anti, Tip, (4) (not-illustrated)   (Replaces: 316078600)				$ 12.89
5D	5303288460		Nut, T,type, Leveling Screw (not Illustrated)				$ 27.14
7A	316007002		Hinge-oven Door, (2)				$ 244.07
7B	3203010		Clip, Hinge, (4) (not Illustrated)   (Replaces: 5303012323)				$ 14.89
8A	5303212540		Panel-oven Bottom		Appelez-nous	-
8B	316064600		Support, Oven Bottom (not-illustrated)				$ 18.95

    View Diagram in Separate Window       Print Part List
