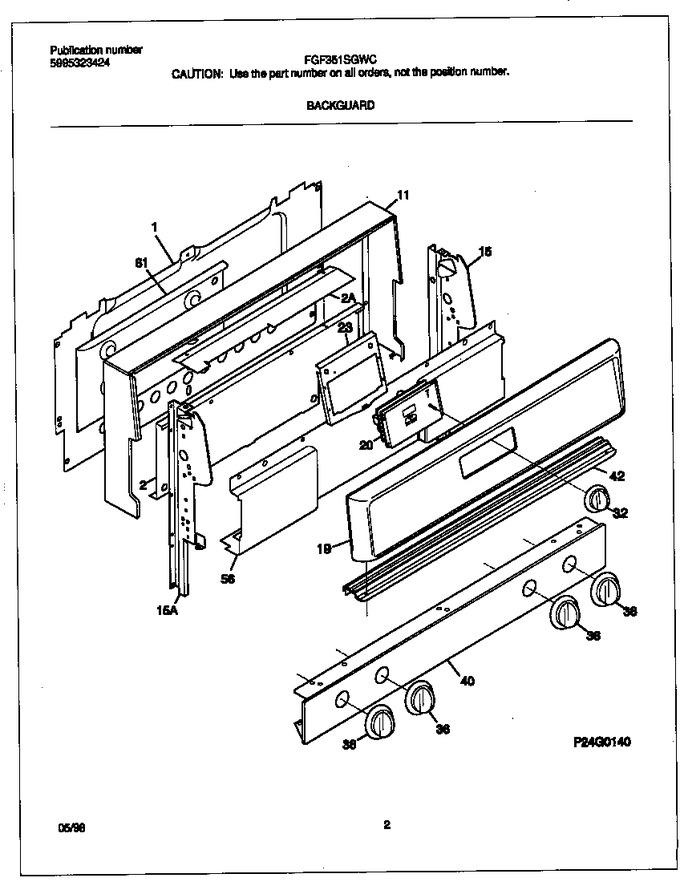

02 - Backguard


03 - Burner


04 - Body


05 - Top/drawer


06 - Door


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	316028701		Shield-backguard, Rear Wall		Appelez-nous	-
2	316053802		Shield-backguard, Inner/top		Appelez-nous	-
11	316061856		Trim-wrapper,textured ,black		Appelez-nous	-
15	316023108		Support-backguard, Rh		Appelez-nous	-
15	316023109		Support,backguard ,lh		Appelez-nous	-
19	316100530		Panel-control,metal ,black		Appelez-nous	-
20	316101100		Clock/timer,trimline		Appelez-nous	-
23	316100300		Bracket-clock Mtg		Appelez-nous	-
32	316101400		Knob-thermostat		Appelez-nous	-
36	316109502		Knob-top Valve,black		Appelez-nous	-
40	316009268		Panel-manifold		Appelez-nous	-
42	316055200		Trim-vent		Appelez-nous	-
56	316074907		Deflector-flue, Black		Appelez-nous	-
*26960	316081301		Shield-oven Door, White, Top				$ 85.94
*26961	316001465		Harness-wiring,backguard		Appelez-nous	-
*26962	316519700		Screw,cup Pt ,8-18 X 3/8 ,hinge ,ind Lght Brkt,manifold   (Replaces: 316021108)				$ 10.02
*26963	316021109		Screw-8-18x1/2 Tr Sqd Black   (Replaces: 316021110)			Immediately	$ 27.50
*26964	316105822		Installation Instr		Appelez-nous	-
*26965	316112500		Template, Anti-tip Bracket				$ 3.55
*26966	316101521		Overlay-clock		Appelez-nous	-
