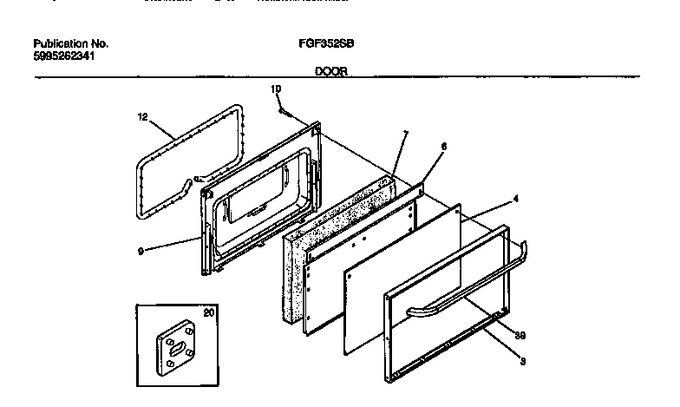

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
3	316067802		Trim,oven Door ,black		Appelez-nous	-
4	5303051153		Glass-oven Door, Solid Black, Outer		Appelez-nous	-
6	5303209317		Shield-insulation, Black		Appelez-nous	-
7	5303209514		Insulation-oven Door		Appelez-nous	-
9	316066602		Liner-oven Door		Appelez-nous	-
10	316001002		Screw-oven Door, Washer Head, 10-24 X 1.81				$ 14.89
12	5303131601		Seal-oven Door				$ 374.63
20	316055101		Spacer-handle, Black, (2)				$ 38.06
39	5304529996		Handle-door, Black, Oven   (Replaces: 316060200)				$ 156.11
*23249	316065300		Plate Warning/caution		Appelez-nous	-
*23250	3203618		Rivet-pop, Waring-plate		Appelez-nous	-
*23251	5303212671		Screw, Cr Pan Hd Sems, 8, 32(bp) X 1		Appelez-nous	-
*23252	5303269859		Screw 8-18 X 1/2 Black		Appelez-nous	-
