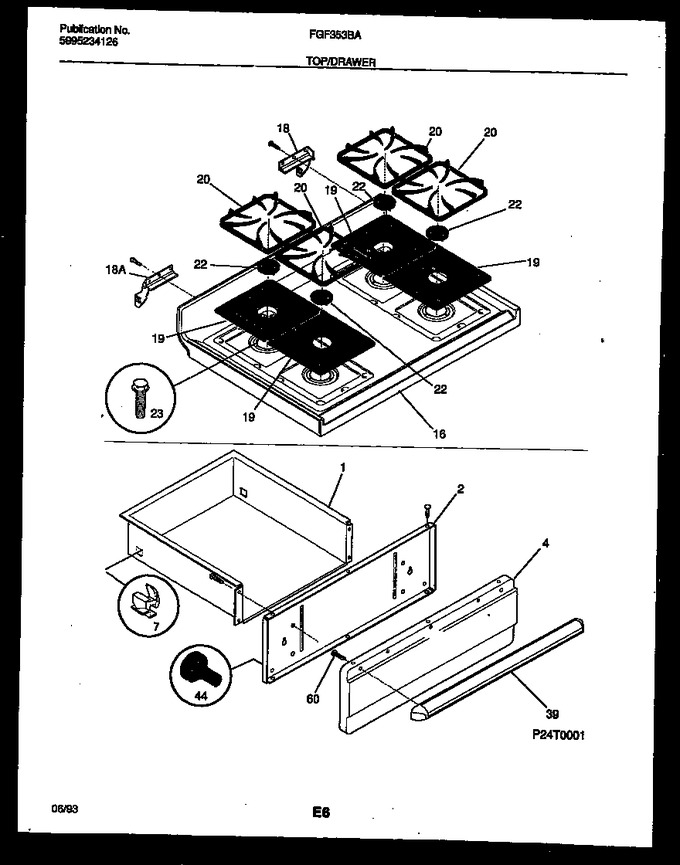

View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
02 - Backguard
03 - Burner, Manifold And Gas Control
04 - Body Parts
05 - Body Parts
06 - Cooktop And Drawer Parts
07 - Door Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 316011501 | Drawer-utility |
|
- | |||||
| 2 | 3131975 | Shield-panel |
|
- | |||||
| 4 | 316056202 | Panel-drawer,almond |
|
- | |||||
| 7 | 3051163 | Glide,drawer ,rear |
|
Immediately | $ 19.41 | ||||
| 16 | 5303285701 | Main Top (almond) |
|
- | |||||
| 18 | 5303273062 | Hinge-main Top (rh) |
|
- | |||||
| 19 | 316011401 | Pan-burner |
|
$ 20.58 | |||||
| 20 | 316025400 | Grate, (4) |
|
- | |||||
| 22 | 316011001 | Cap-burner, Cast, Black, (4) |
|
- | |||||
| 23 | 5303281650 | Screw-burner Mtg, Hex Washer Head, M 3 X 10 |
|
- | |||||
| 39 | 316026100 | Handle-drawer, Black |
|
- | |||||
| 44 | 3131903 | Bumper |
|
$ 55.36 | |||||
| 60 | 5303288574 | Screw, Truss Head, 8-10 X 3/8 |
|
- | |||||
| 16A | 5303271891 | Gusset-top Mtg, Rh (non-illustrated) |
|
- | |||||
| 16B | 5303271892 | Gusset-top Mtg, Lh (non-illustrated) |
|
- | |||||
| 18A | 53032173063 | Hinge-main Top, Lh |
|
- | |||||
| 18B | 5303288567 | Screw, 8-18 X 3/8, (4) (non-illustrated) |
|
- | |||||
| 4A | 08067785 | Screw, Hex Washer Head, 38-18(ab) X 1/2 |
|
- |
