SELECT A DIAGRAM
01 - Cover
02 - Backguard
03 - Burner
04 - Body

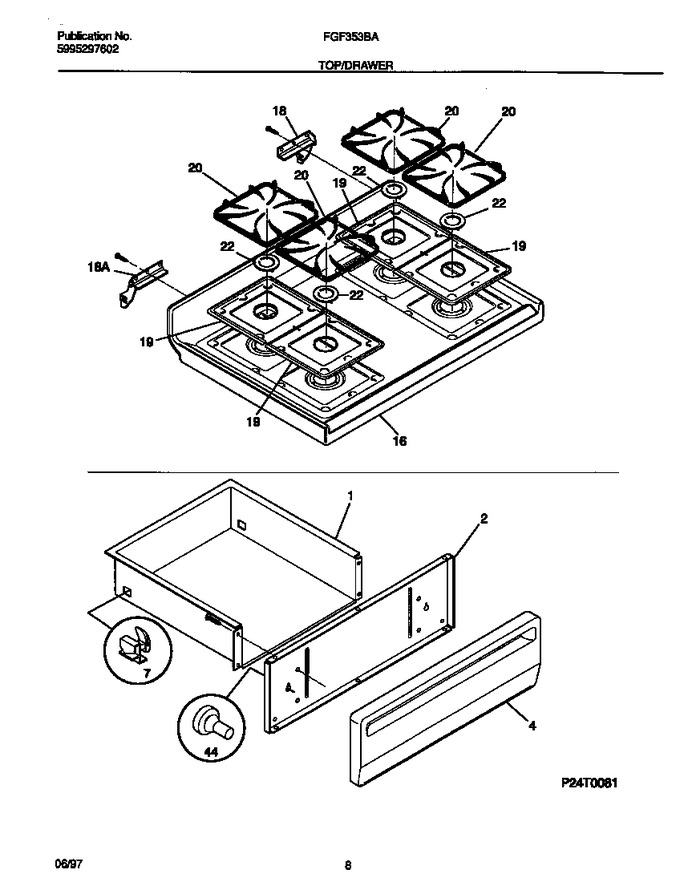

05 - Top/drawer
06 - Door
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 316011501 | Drawer-utility |
|
- | |||||
| 2 | 3131975 | Shield-panel |
|
- | |||||
| 4 | 316021113 | Screw-drawer Pnl (not Illustrated) |
|
- | |||||
| 4 | 316084406 | Panel-drawer, Almond |
|
- | |||||
| 7 | 3051163 | Glide,drawer ,rear |
|
Immediately | $ 19.41 | ||||
| 16 | 5303301547 | Main Top, Almond |
|
- | |||||
| 19 | 316011401 | Pan-burner (4) |
|
$ 20.58 | |||||
| 20 | 316025400 | Grate, Black, (4) |
|
- | |||||
| 22 | 316011014 | Cap-burner, Matte Black, (4), Small |
|
- | |||||
| 44 | 3131903 | Bumper |
|
$ 55.36 | |||||
| *61004 | 3203618 | Rivet-pop, Warning-plate |
|
- | |||||
| *61005 | 316519700 | Screw,cup Pt,8-18x3/8,hinge,ind Lt Brkt,manf Pnl (Replaces: 316021108) |
|
$ 10.02 | |||||
| *61006 | 316089600 | Spacer-drawer, (2) |
|
- | |||||
| *61007 | 5303280311 | Screw, Waf Hd Sdr, 10-32 X 5/16, (2) |
|
$ 6.62 | |||||
| *61008 | 5303288567 | Screw, 8-18 X 3/8, (4) |
|
- | |||||
| 16A | 5303271891 | Gusset-top Mtg, Rh (not Illustrated) |
|
- | |||||
| 16B | 5303271892 | Gusset-top Mtg, Lh (not Illustrated) |
|
- |
