SELECT A DIAGRAM

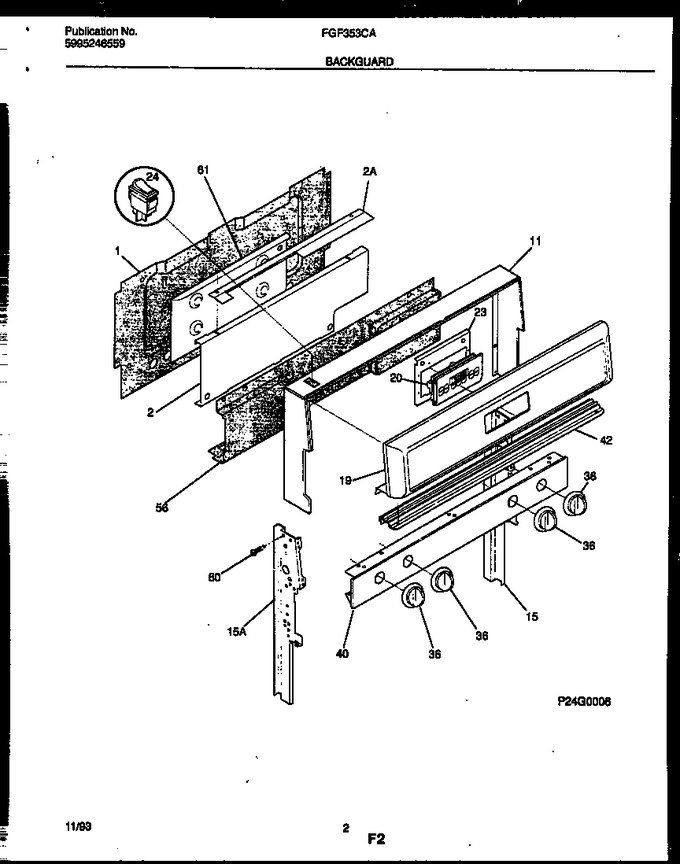

02 - Backguard


03 - Burner, Manifold And Gas Control


04 - Body Parts


05 - Cooktop And Drawer Parts


06 - Door Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	316028701		Shield-backguard, Rear Wall		Appelez-nous	-
2	316051601		Shield-backguard, Inner		Appelez-nous	-
11	316061811		Trim-wrapper, White		Appelez-nous	-
15	316023104		Support-backguard, Black, Rh		Appelez-nous	-
19	316024420		Panel-control, Metal		Appelez-nous	-
20	316027204		Clock/timer, Electronic Cont		Appelez-nous	-
23	316033203		Bracket-clock Mtg		Appelez-nous	-
24	316005603		Switch-oven Light, Rocker, White		Appelez-nous	-
36	316049301		Knob-top Valve, (4)		Appelez-nous	-
40	316009269		Panel-manifold		Appelez-nous	-
42	316055201		Trim-vent		Appelez-nous	-
56	316014601		Deflector-flue		Appelez-nous	-
60	5303288574		Screw, Truss Head, 8-10 X 3/8		Appelez-nous	-
61	316055001		Shield, Bkgd Flue		Appelez-nous	-
15A	316023105		Support-backguard, Black, Lh		Appelez-nous	-
2A	316053801		Shield-backguard, Inner Top		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
