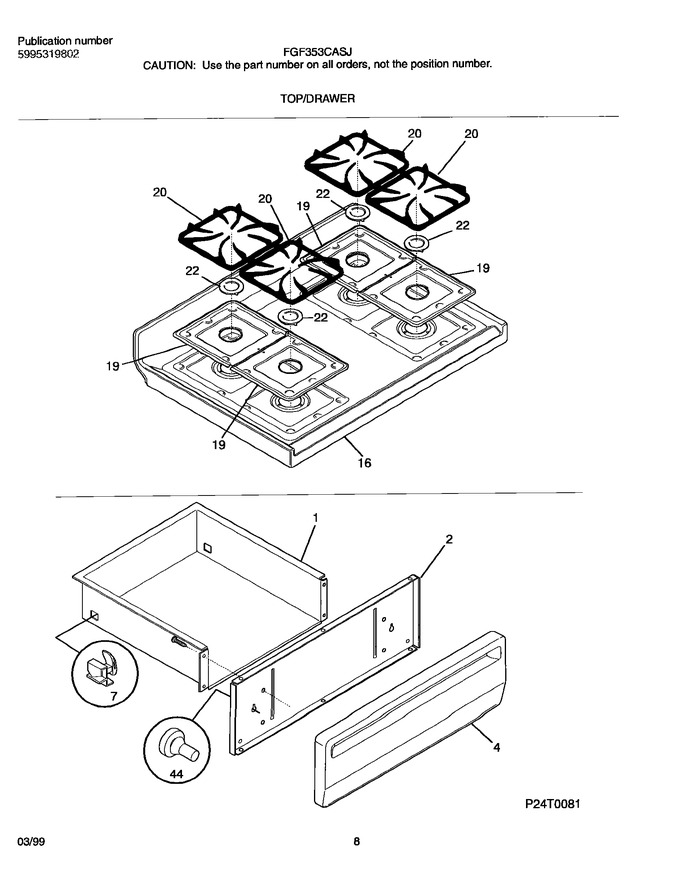

09 - Top/drawer


11 - Door


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	316011501		Drawer-utility		Appelez-nous	-
2	3131975		Shield-panel		Appelez-nous	-
4	316084405		Panel-drawer, White		Appelez-nous	-
4	316021109		Screw-8-18 X 1/2 Tr Sqd White   (Replaces: 316021112)			Immediately	$ 27.50
7	3051163		Glide,drawer ,rear			Immediately	$ 19.41
16	5303301546		Main Top, White		Appelez-nous	-
44	3131903		Bumper				$ 55.36
F19	316011409		Pan-burner, Gray, (4)				$ 153.83
F20	316085304		Grate, (4)		Appelez-nous	-
F22	316011003		Cap-burner, Gray, Small		Appelez-nous	-
NI	5303288567		Screw, 8-18 X 3/8, (4)		Appelez-nous	-
NI	3203618		Rivet-pop, Warning-plate		Appelez-nous	-
NI	316089500		Screw-10-16 X .486, Safety Valve, Handle				$ 13.46
NI	316089600		Spacer-drawer, (2)		Appelez-nous	-
NI	5303280311		Screw, Waf Hd Sdr, 10-32 X 5/16				$ 6.62
NI	316519700		Screw,cup Pt,8-18x3/8,hinge,ind Lt Brkt,manf Pnl   (Replaces: 316021108)				$ 10.02
