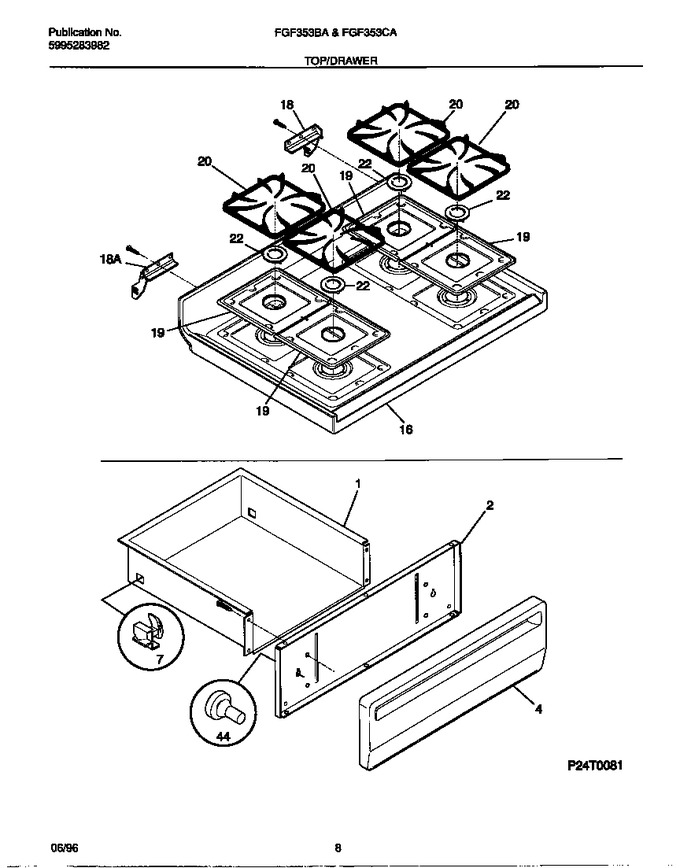

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	316011501		Drawer-utility		Appelez-nous	-
2	3131975		Shield-panel		Appelez-nous	-
4	316084406		Panel-drawer, Almond		Appelez-nous	-
4	08067785		Screw, Hex Washer Head, 8-18(ab) X 1/2 (not Illustrated)		Appelez-nous	-
4	316021113		Screw-drawer Pnl (not Illustrated)		Appelez-nous	-
7	3051163		Glide,drawer ,rear			Immediately	$ 19.41
16	5303301547		Main Top, Almond		Appelez-nous	-
19	316011408		Pan-burner, (4)		Appelez-nous	-
20	316025402		Grate, (4)		Appelez-nous	-
22	316011004		Cap-burner, Almond, Small, (2)		Appelez-nous	-
44	3131903		Bumper				$ 55.36
*63284	3203618		Rivet-pop, Warning-plate		Appelez-nous	-
*63285	316519700		Screw, Cup Pt, 8-18 X 3/8   (Replaces: 316021108)				$ 10.02
*63286	5303280311		Screw, Waf Hd Sdr, 10-32 X 5/16				$ 6.62
*63287	5303288567		Screw, 8-18 X 3/8, (4)		Appelez-nous	-
