SELECT A DIAGRAM

01 - Cover


02 - Backguard


03 - Burner


04 - Body

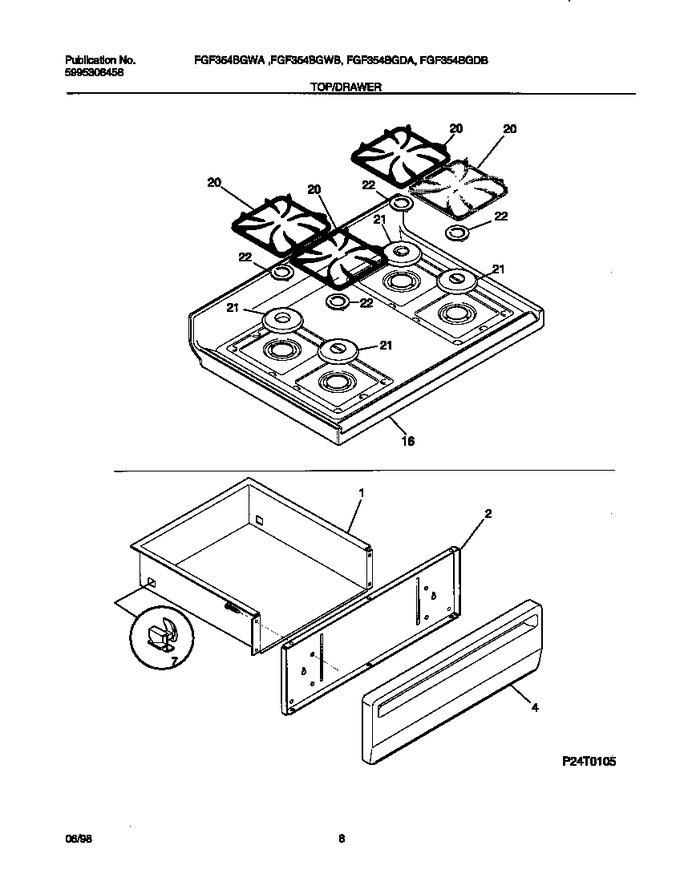

05 - Top/drawer


06 - Door


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	316011501		Drawer-utility		Appelez-nous	-
2	3131975		Shield-panel		Appelez-nous	-
4	316084406		Panel-drawer, Almond		Appelez-nous	-
7	3051163		Glide,drawer ,rear			Immediately	$ 19.41
10	5303280308		Screw-handle Mtg, Wafer Head, 10-24(t) X 2				$ 16.96
16	5303301547		Main Top, Almond		Appelez-nous	-
20	316085201		Grate, (4)		Appelez-nous	-
21	316011300		Trim Ring-burner, Black, Small				$ 68.59
22	316098501		Cap-burner,black ,(2)		Appelez-nous	-
44	3131903		Bumper				$ 55.36
*49143	3203618		Rivet-pop, Warning-plate		Appelez-nous	-
*49144	316021109		Screw,hex, 8-18 X 3/8, Back\bodyside   (Replaces: 316021105)			Immediately	$ 27.50
*49145	316519700		Screw,cup Pt ,8-18 X 3/8 ,hinge ,ind Lght Brkt,manifold   (Replaces: 316021108)				$ 10.02
*49146	316021109		Screw-8-18x1/2 Tr Sqd Black   (Replaces: 316021110)			Immediately	$ 27.50
*49148	316021113		Screw-8-18x1/2 Tr Sqd Almond		Appelez-nous	-
*49149	316089500		Screw, 10-16 X .486, Safety Valve, Handle, (4)				$ 13.46
*49150	316089600		Spacer-drawer, (2)		Appelez-nous	-
*49151	5303280311		Screw, Waf Hd Sdr, 10-32 X 5/16, (2)				$ 6.62
*49152	08067785		Screw,hex Washer Head, 8-18(ab) X 1/2		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
