SELECT A DIAGRAM

01 - Cover


02 - Backguard


03 - Burner


04 - Body


05 - Top/drawer


06 - Door


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart

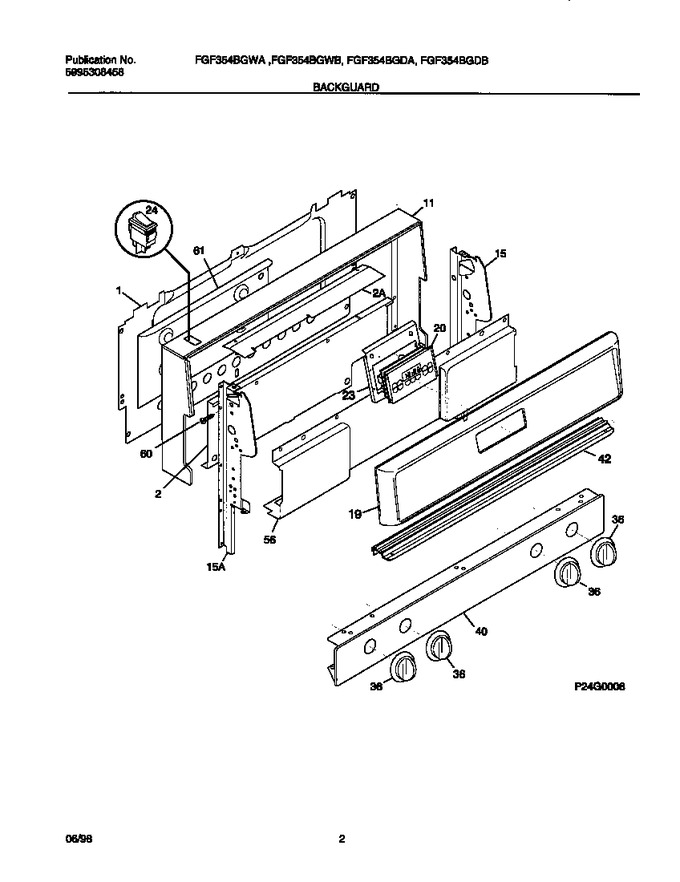

1	316028701		Shield-backguard, Rear Wall		Appelez-nous	-
2	316053802		Shield-backguard, Inner/top		Appelez-nous	-
11	316083718		Trim-wrapper,black		Appelez-nous	-
15	316023108		Support-backguard, Rh		Appelez-nous	-
15	316023109		Support,backguard ,lh		Appelez-nous	-
19	316100530		Panel-control,metal ,black		Appelez-nous	-
20	316101102		Clock/timer, Trimline		Appelez-nous	-
23	316100300		Bracket-clock Mtg		Appelez-nous	-
24	5304527841		Switch-rocker, Oven Light, Black   (Replaces: 316005602)			Immediately	$ 11.38
32	316101400		Knob-thermostat		Appelez-nous	-
36	316109502		Knob-top Valve Blk,black		Appelez-nous	-
40	316009268		Panel-manifold		Appelez-nous	-
42	316055200		Trim-vent		Appelez-nous	-
56	316074907		Deflector-flue, Black		Appelez-nous	-
*49120	316002989		Instructions,installation		Appelez-nous	-
*49121	316021109		Screw,hex, 8-18 X 3/8, Back\bodyside   (Replaces: 316021105)			Immediately	$ 27.50
*49122	316519700		Screw,cup Pt ,8-18 X 3/8 ,hinge ,ind Lght Brkt,manifold   (Replaces: 316021108)				$ 10.02
*49123	316021109		Screw-8-18x1/2 Tr Sqd Black   (Replaces: 316021110)			Immediately	$ 27.50
*49124	316071902		Gasket-edge		Appelez-nous	-
*49125	316101505		Overlay-clock		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
