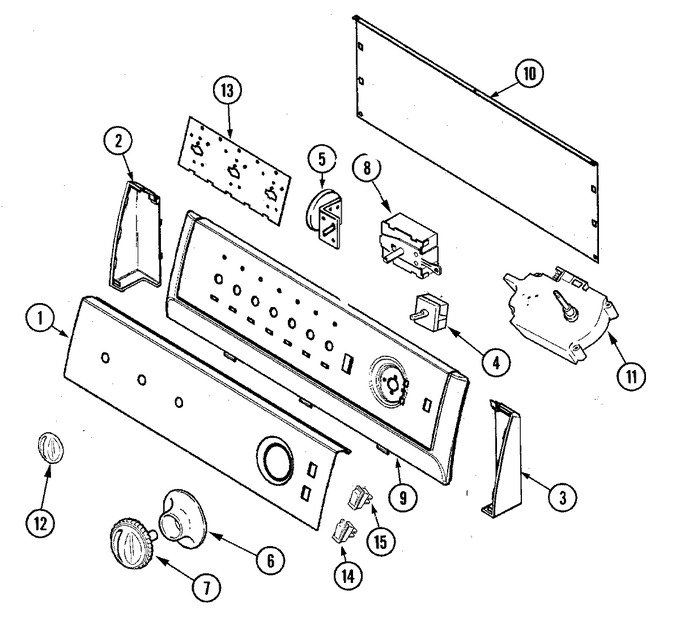

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	21001566		Panel, Control	10	Appelez-nous	-
2	WP90767		Screw   (Replaces: 25-3092)	10		Immediately	$ 7.04
2	21001546		Endcap, Panel (lt-wht)	10	Appelez-nous	-
3	WP90767		Screw   (Replaces: 25-3092)	10		Immediately	$ 7.04
3	21001547		Endcap, Panel (rt-wht)	10	Appelez-nous	-
4	WP90767		Screw   (Replaces: 25-3092)	10		Immediately	$ 7.04
4	21001226		Switch, Water Temp. 4 Position	10	Appelez-nous	-
5	WP90767		Screw   (Replaces: 25-3092)	10		Immediately	$ 7.04
5	21001882		Switch, Pressure (emz)	20	Appelez-nous	-
5	WP21001554		Switch, Water Level   (Replaces: 21001554)	10			$ 143.59
6	21001520		Skirt, Timer Knob (wht)	10	Appelez-nous	-
7	21001526		Knob, Timer (wht)	10			$ 24.05
8	21001173		Switch, Speed	10	Appelez-nous	-
9	21001552		Frame (wht), Control Panel	10	Appelez-nous	-
10	21001527		Shield, Rear (back Panel)	10	Appelez-nous	-
10	WP90767		Screw   (Replaces: 25-3092)	10		Immediately	$ 7.04
11	WP90767		Screw   (Replaces: 25-3092)	10		Immediately	$ 7.04
11	21001595		Timer	10			$ 199.33
12	21001544		Knob, Selector (wht)	10	Appelez-nous	-
13	21001603		Shield, Control (3 Pos.)	10	Appelez-nous	-
14	21001714		Switch, Rocker (wht)	10	Appelez-nous	-
15	21001482		Switch, Momentary (wht)	10	Appelez-nous	-
NI	21001935		Harness, Wiring	20	Appelez-nous	-
NI	21001788		Harness, Wire	10	Appelez-nous	-
NI	21001810		Manual, Use & Care	10	Appelez-nous	-
