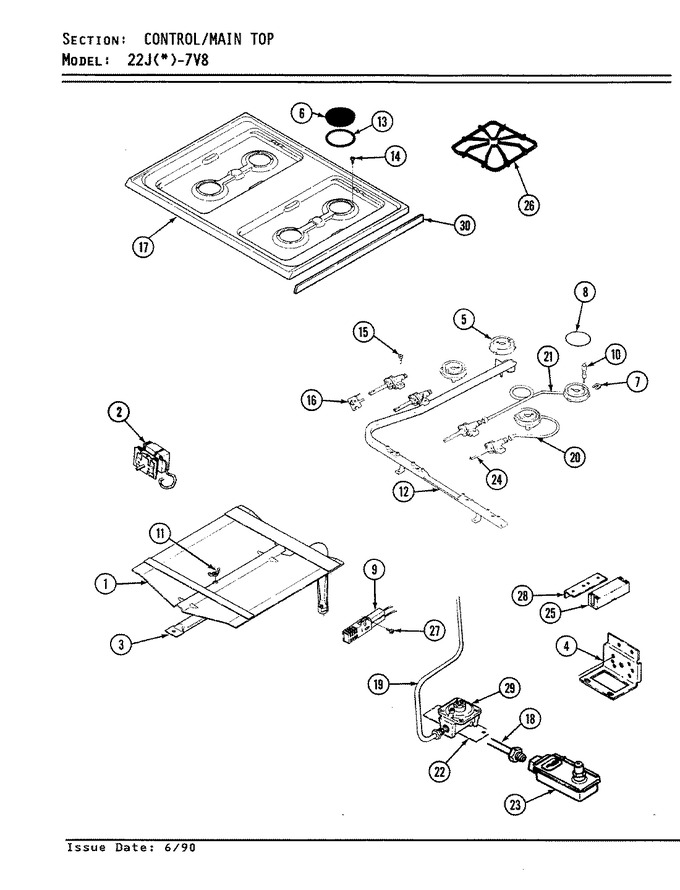

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 3601F181-45 | Baffle, Oven Burner | 01 |
|
- | ||||
| 2 | 7101P279-60 | Screw W/washer | 01 |
|
- | ||||
| 2 | 7404P063-60 | Thermostat | 01 |
|
- | ||||
| 3 | 3403A015-45 | Burner Oven | 07 |
|
- | ||||
| 3 | 3403D027-45 | Burner, Oven | 09 |
|
- | ||||
| 3 | 7505P101-60 | Burner | 01 |
|
- | ||||
| 4 | 3807F120-34 | Support | 01 |
|
- | ||||
| 5 | 7505A155-60 | Burner, Top Complete | 01 |
|
- | ||||
| 5 | 5110A825-60 | Wire, Igniter Rear | 01 |
|
- | ||||
| 5 | 7505P187-60 | Burner, Top | 02 |
|
- | ||||
| 5 | 5110A824-60 | Wire, Igniter Front | 01 |
|
- | ||||
| 6 | 7504P007-60 | Cap, Surface Burner, Black | 01 |
|
- | ||||
| 7 | 7112P072-60 | Clip | 01 |
|
- | ||||
| 8 | 7201P037-60 | Gasket, Burner | 01 |
|
- | ||||
| 9 | 12400035 | Igniter, Oven (Replaces: 7432P067-60) | 01 |
|
Immediately | $ 60.44 | |||
| 10 | 7432P053-60 | Igniter, Burner | 01 |
|
- | ||||
| 11 | 7103P030-60 | Nut, Wing | 01 |
|
$ 6.37 | ||||
| 12 | 7513P104-60 | Pipe, Manifold | 06 |
|
- | ||||
| 12 | 7513P093-60 | Manifold Pipe | 01 |
|
- | ||||
| 13 | 2014F001-00 | Ring, Black | 01 |
|
- | ||||
| 14 | 7101P256-60 | Screw | 01 |
|
- | ||||
| 15 | 7101P043-60 | Screw, Control Valve | 01 |
|
- | ||||
| 16 | 7403P258-60 | Switch | 12 |
|
- | ||||
| 16 | 7403P282-60 | Switch, Top Ignitor | 13 |
|
- | ||||
| 16 | WP7403P190-60 | Switch, Burner (Replaces: 7403P190-60) | 01 |
|
$ 118.82 | ||||
| 16 | 7403P216-60 | Switch, Top Burner | 06 |
|
- | ||||
| 16 | 7403P246-60 | Switch, Lighter Burner | 10 |
|
- | ||||
| 16 | WP7403P287-60 | Switch, Igniter (Replaces: 7403P287-60) | 15 |
|
$ 130.75 | ||||
| 17 | 8003P011-60 | Spacer, Main Top | 01 |
|
- | ||||
| 18 | 7506P098-60 | Tube, Regulator | 01 |
|
- | ||||
| 19 | 7507P053-60 | Fitting, Straight | 01 |
|
- | ||||
| 19 | 7506P100-60 | Tube, Manifold Feed | 01 |
|
- | ||||
| 20 | 7506P076-60 | Tube, Front Burner | 01 |
|
- | ||||
| 21 | 7506P077-60 | Tube, Rear Burner | 01 |
|
- | ||||
| 22 | 3801F191-45 | Bracket, Regulator Mtg | 01 |
|
- | ||||
| 23 | 7501P017-60 | Valve, Oven | 01 |
|
- | ||||
| 23 | 7501P108-60 | Valve, Oven | 09 |
|
- | ||||
| 24 | 7502P229-60 | Valve | 13 |
|
- | ||||
| 24 | 7502P220-60 | Valve, Top Burner | 15 |
|
- | ||||
| 24 | 7502P100-60 | Valve, Top Burner | 01 |
|
- | ||||
| 24 | 7502P141-60 | Valve, Top Burner | 06 |
|
- | ||||
| 24 | 7214P003-60 | Sleeve | 01 |
|
- | ||||
| 25 | 12001596 | Module, Spark (Replaces: 7431P017-60) | 03 |
|
Immediately | $ 85.93 | |||
| 25 | 7431P016-60 | Module, Spark | 01 |
|
- | ||||
| 26 | 7518P009-60 | Grate, Black | 01 |
|
- | ||||
| 27 | WP4159193 | Screw (10-24x5/16-ni) (Replaces: 7101P282-60) | 01 |
|
$ 4.29 | ||||
| 28 | 3801F226-45 | Bracket, Spark Module | 03 |
|
- | ||||
| 28 | 3801F205-45 | Bracket, Module Support | 01 |
|
- | ||||
| 29 | 7510P048-60 | Regulator, Pressure | 16 |
|
- | ||||
| 29 | 1555251 | Nut, Loxit (3/8``) | 01 |
|
- | ||||
| 29 | 7510P028-60 | Regulator, Pressure | 01 |
|
- | ||||
| 29 | 7510P040-60 | Regulator | 08 |
|
- | ||||
| 30 | 7746P025-60 | Trim, Main Top (left) | 01 |
|
- | ||||
| 30 | 7746P026-60 | Trim, Main Top (right) | 01 |
|
- | ||||
| 30 | M0282009 | Nut (Replaces: 7103P064-60) | 01 |
|
$ 12.06 | ||||
| 30 | WP7101P072-60 | Screw (Replaces: 7101P072-60) | 01 |
|
$ 6.77 | ||||
| 31 | 7509P033-60 | Orifice, Sealed Burner-lp | 01 |
|
- | ||||
| 31 | 7509P034-60 | Orifice, Sealed Burner-nat | 01 |
|
- | ||||
| 32 | 5415A027-60 | Gas Conversion Kit | 01 |
|
- | ||||
| 32 | 5415A026-60 | Conversion Kit, Natural To Lp | 01 |
|
- |
