SELECT A DIAGRAM

02 - Backguard


03 - Cooktop Parts


04 - Door Parts


05 - Drawer Parts


06 - Burner, Manifold And Gas Control


07 - Body Parts

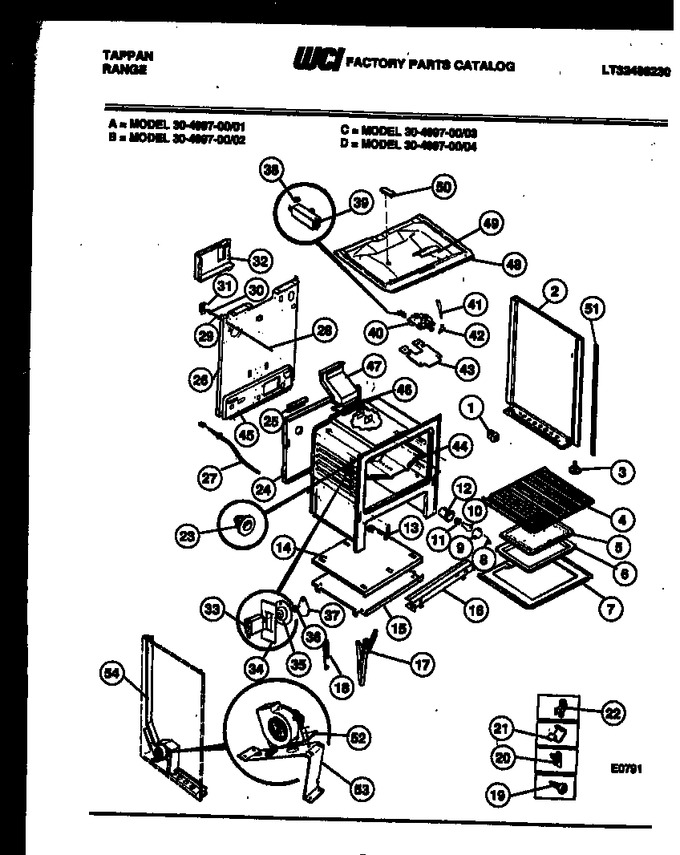

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	3051736		Spacer Bodyside		Appelez-nous	-
2	3131221		Panel Bodyside (black) Lh		Appelez-nous	-
3	636M004P01		Screw - Leveling (4)		Appelez-nous	-
4	3131973		Rack, Oven (2)		Appelez-nous	-
5	3131356		Insert, Broiler Pan		Appelez-nous	-
6	539T010F01-86		Pan, Broiler		Appelez-nous	-
7	058T036F03-86		Bottom, Oven		Appelez-nous	-
8	3131104		Wire, Glass Retainer		Appelez-nous	-
9	3131104		Wire, Glass Retainer		Appelez-nous	-
10	374T018P05		Light Bulb		Appelez-nous	-
11	3051735		Socket-oven Light		Appelez-nous	-
12	3131363		Tube, Oven Light		Appelez-nous	-
13	3131570		Cover Hinge Cutout				$ 7.35
14	3131951		Shield-heat-upper		Appelez-nous	-
15	3131313		Shield-heat-lower		Appelez-nous	-
16	3131311		Shield, Main Front		Appelez-nous	-
17	3051414		Channel, Door Hinge (2)		Appelez-nous	-
18	3051306		Spring Oven Door (2)		Appelez-nous	-
19	3131731		Screw Oven Bottom		Appelez-nous	-
20	3051162		Glide-utility Drawer (2)			Immediately	$ 8.22
21	145T130P01		Clip, Wire		Appelez-nous	-
22	145T025P01		Clip-thermo Bulb				$ 1.76
23	3051731		Button-remote Light Switch		Appelez-nous	-
24	3131316		Shield, Heat		Appelez-nous	-
25	3131278		Angle Light Switch		Appelez-nous	-
26	3131567		Main-back		Appelez-nous	-
27	3018668		Senor-probe Temp		Appelez-nous	-
28	3051251		Cover, Rod		Appelez-nous	-
29	3051495		Rod-light Switch		Appelez-nous	-
30	695T128P04		Switch-oven Light		Appelez-nous	-
31	3131289		Brkt Light Switch		Appelez-nous	-
32	3131294		Channel, Light Shield		Appelez-nous	-
33	3018669		Recept. Probe		Appelez-nous	-
34	3018013		Shield-probe Recpt.		Appelez-nous	-
35	3018009		Plate Probe Recept. Mtg		Appelez-nous	-
36	479T069P35		Nut		Appelez-nous	-
37	3018001		Dover-probe Recept.		Appelez-nous	-
38	241T001P01		Fastener-push On		Appelez-nous	-
39	3131672		Switch, Latching		Appelez-nous	-
40	3015453		Latch-door		Appelez-nous	-
41	3131357		Handle, Latch		Appelez-nous	-
42	358T158S02		Knob, Latch		Appelez-nous	-
43	3131314		Shield-oven-top		Appelez-nous	-
44	3131315		Shield, Heat Baffle		Appelez-nous	-
45	3131590		Shield-wall-rear		Appelez-nous	-
46	3131355		Gasket, Flue		Appelez-nous	-
47	3131931		Flue		Appelez-nous	-
48	095T030F02-86		Burner Box Bottom		Appelez-nous	-
49	3131101		Cover, Plate		Appelez-nous	-
50	3015372		Cover-burner Box		Appelez-nous	-
51	3051326		Trim Body Side		Appelez-nous	-
52	3018671		Blower-motor Assy.		Appelez-nous	-
53	3018672		Brkt Blower Mtg.		Appelez-nous	-
54	3018675		Air-duct		Appelez-nous	-
*15052	3131593		Shield, Bi Metal Latch		Appelez-nous	-
*15052	3131956		Spacer-baffle (2)		Appelez-nous	-
*15052	615T030P03		Rivet		Appelez-nous	-
*15052	3051413		Shield-bi Metal		Appelez-nous	-
2A	3131217		Panel Bodyside (black) Rh		Appelez-nous	-
51A	655T437F01		Shield, Wool (non-illustrated)		Appelez-nous	-
51B	3051307		Stud, Spacer (2) (non-illustrated)		Appelez-nous	-
51C	5304534000		Cord, Power (non-illustrated)   (Replaces: 3131425)			Immediately	$ 33.37
51D	241T017P255		Fastener, Power Cord (non-illustrated)		Appelez-nous	-
51E	3131593		Shield-bi-metal (non-illustrated)		Appelez-nous	-
51F	636T144P01		Set Screw Knob (non-illustrated)		Appelez-nous	-
51G	694T092F01		Support-oven Bottom (non-illustrated)		Appelez-nous	-
51H	3131903		Bumper				$ 55.36
51I	3131302		Insulation-front (non-illustrated)		Appelez-nous	-
51J	3131303		Insulation-oven Back (non-illustrated)		Appelez-nous	-
51K	3131304		Insulation-top (non-illustrated)		Appelez-nous	-
51L	3017133		Insulation-wrap (non-illustrated)		Appelez-nous	-
51M	3018670		Probe-roast Control (non-illustrated)		Appelez-nous	-
51N	3017527		Alum-foil (use When Replacing Body Side) (non-illustrated)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
