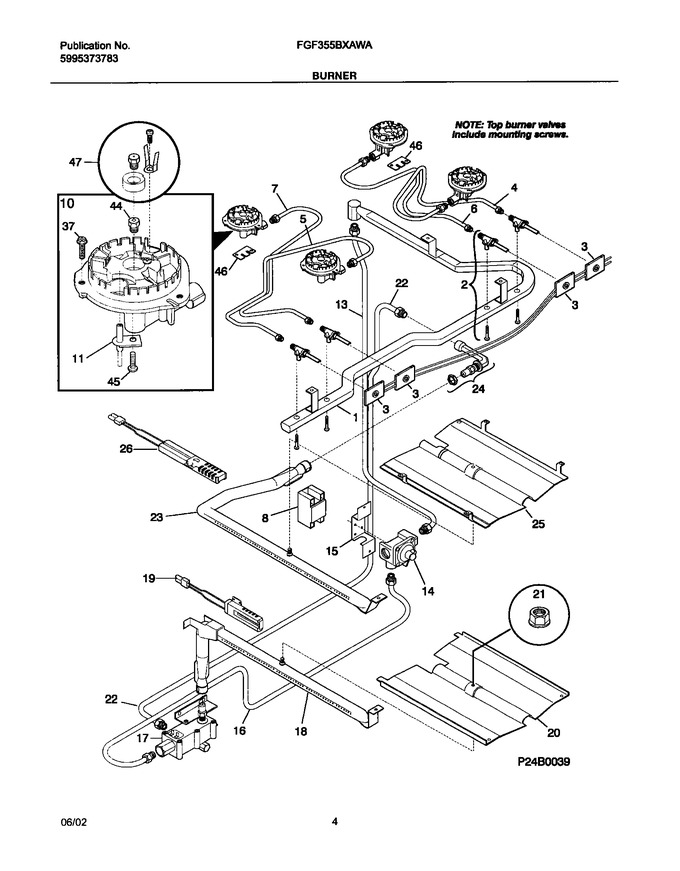

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 316134501 | Manifold Pipe,1 |
|
- | |||||
| 11 | 316011200 | Ignitor,top Burner ,(4) ,w/mtg Bracket |
|
Immediately | $ 38.68 | ||||
| 15 | 316091600 | Bracket-regulator |
|
$ 73.56 | |||||
| 20 | 3131284 | Baffle-oven Burner |
|
$ 155.77 | |||||
| 21 | 154079601 | Nut,hex Head Sems (Replaces: 5303013272) |
|
$ 0.41 | |||||
| 25 | 5303210379 | Baffle-broiler |
|
$ 175.88 | |||||
| 37 | 316069301 | Screw,burner Mtg |
|
$ 2.99 | |||||
| 44 | 5303210090 | Orifice,top Burner ,9k |
|
$ 54.18 | |||||
| 45 | 316011100 | Screw,self-tapping ,m3x5.8 ,ignitor Mtg |
|
$ 3.41 | |||||
| 46 | 316074700 | Plate-burner Tube |
|
- | |||||
| 47 | 5303286386 | Lp-conversion Kit |
|
$ 143.29 | |||||
| F10 | 5303935025 | Burner Assy,sealed ,small ,9k |
|
- | |||||
| F13 | 316065005 | Tube,3/8 ,aluminum ,rgltr To Manf ,with Fittings |
|
$ 91.51 | |||||
| F14 | 5304521339 | Regulator,pressure (Replaces: 316091706) |
|
Immediately | $ 105.42 | ||||
| F16 | 316065003 | Tube,valve To Regul. `3/8 |
|
$ 126.42 | |||||
| F17 | 5303208499 | Valve-safety-dual |
|
Immediately | $ 559.67 | ||||
| F18 | 3131290 | Burner-oven |
|
- | |||||
| F19 | 5303935066 | Ignitor,oven Kit ,w/nut & Instr |
|
Immediately | $ 59.58 | ||||
| F2 | 5303935184 | Valve,top Buner ,9k ,with Mtg Screws |
|
- | |||||
| F22 | 316065002 | Tube-valve To Mixer |
|
$ 80.90 | |||||
| F23 | 08067935 | Burner-broiler |
|
$ 142.59 | |||||
| F24 | 316070400 | Elbow`mixer |
|
- | |||||
| F26 | 5303935068 | Ignitor,broiler (Replaces: 316119302) |
|
$ 166.55 | |||||
| F3 | 316001824 | Wiring Harness,w/igntr Switch |
|
$ 222.65 | |||||
| F4 | 316059612 | Tube-burner, Red, Rf |
|
$ 88.25 | |||||
| F5 | 316059613 | Tube-burner, Green, Lf |
|
$ 87.16 | |||||
| F6 | 316059614 | Tube,burner ,natural ,rr |
|
$ 125.06 | |||||
| F7 | 316059615 | Tube-burner, Black, Lr |
|
$ 106.32 | |||||
| F8 | 5304505695 | Module,spark (Replaces: 316135701) |
|
Immediately | $ 68.16 | ||||
| NI | 316113400 | Spacer,mixer Elbow |
|
- | |||||
| NI | 08068018 | Shield,wire ,safety Valve |
|
- | |||||
| NI | 316021104 | Screw`hex ,8-18 X 3/8 `nick `(3) `regulator Brkt |
|
$ 7.79 | |||||
| NI | 5303289034 | Wiring Harness, Module/igniter |
|
$ 188.84 | |||||
| NI | 316134300 | Screw,10-24 ,valve Mounting |
|
- | |||||
| NI | 5303271648 | Screw,wafer Hd Sq Dr ,8-18ab X 0.5 |
|
Immediately | $ 13.46 |
