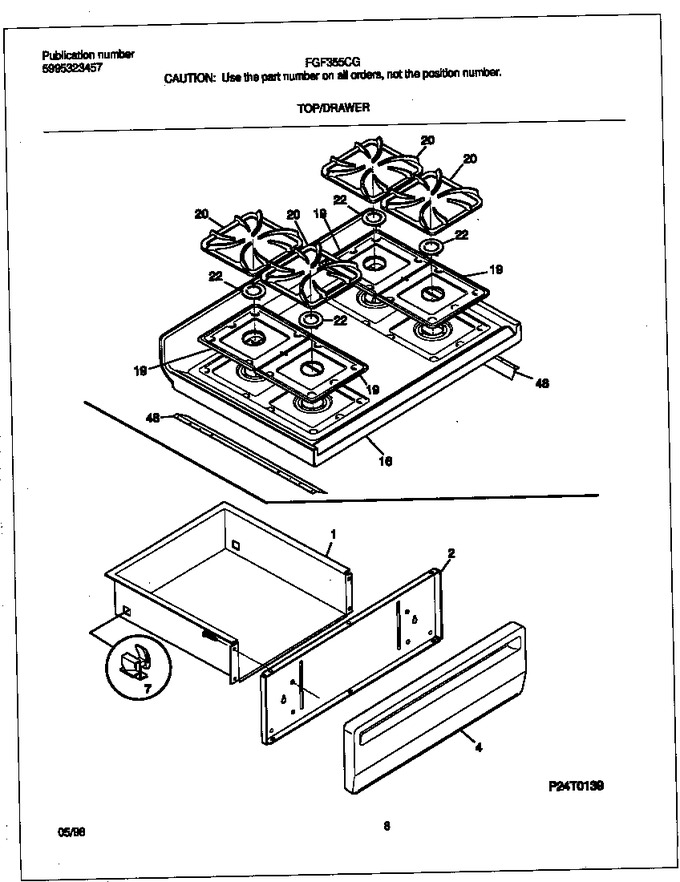

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	316011501		Drawer-utility		Appelez-nous	-
2	3131975		Shield-panel		Appelez-nous	-
4	316084407		Panel-drawer, Black		Appelez-nous	-
7	3051163		Glide,drawer ,rear			Immediately	$ 19.41
16	5303291521		Main, Top Black		Appelez-nous	-
19	316011401		Pan-burner, Black ,(4)				$ 20.58
20	316085305		Grate,(4)		Appelez-nous	-
22	316122100		Cap-burner, Powder Metal ,gloss Black ,small,(4)		Appelez-nous	-
48	316077401		Shield-maintop,(2)		Appelez-nous	-
*88017	316519700		Screw,cup Pt ,8-18 X 3/8 ,hinge ,ind Lght Brkt,manifold   (Replaces: 316021108)				$ 10.02
*88018	316021109		Screw-8-18x1/2 Tr Sqd Black   (Replaces: 316021110)			Immediately	$ 27.50
*88020	316089600		Spacer-drawer, (2)		Appelez-nous	-
*88021	5303280311		Screw, Waf Hd Sdr, 10-32 X 5/16, (2)				$ 6.62
