Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart

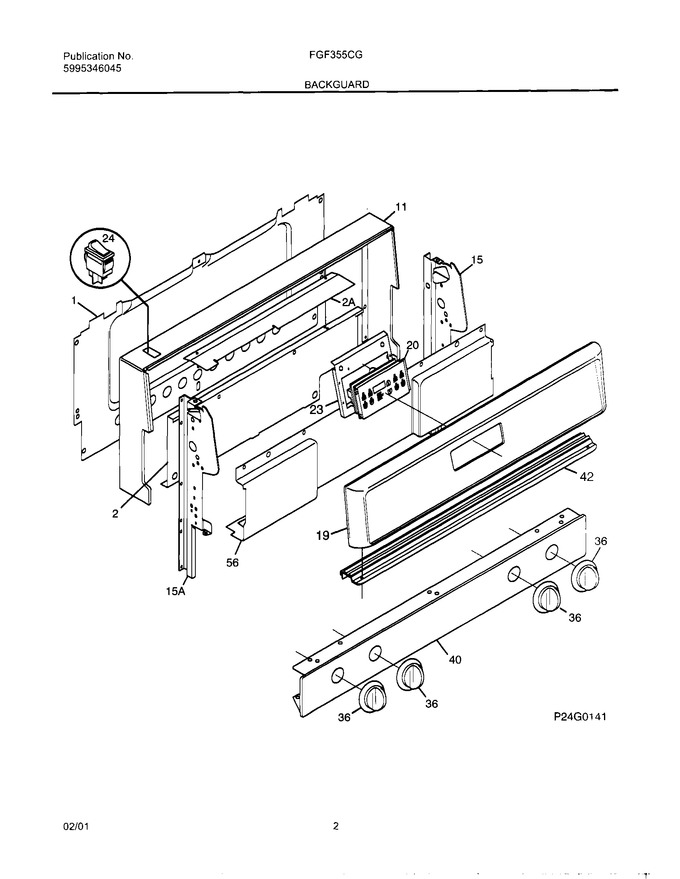

1	316028700		Shield-backguard,galv ,rear Wall		Appelez-nous	-
2	316053802		Shield-backguard, Inner/top		Appelez-nous	-
2	316051600		Shield,backguard ,inner		Appelez-nous	-
11	316083718		Trim-wrapper,black ,textured,w/hole		Appelez-nous	-
15	316023109		Support,backguard ,lh		Appelez-nous	-
15	316023108		Support-backguard, Rh		Appelez-nous	-
19	316100530		Panel-control,black		Appelez-nous	-
20	316131600		Clock/timer,electronic				$ 296.99
23	316100301		Bracket-timer		Appelez-nous	-
24	5304527841		Switch-oven Light,rocker ,black   (Replaces: 316118100)			Immediately	$ 11.38
36	316109512		Knob-top Valve,black				$ 62.27
40	316009268		Panel-manifold,black		Appelez-nous	-
42	316055200		Trim-vent,black		Appelez-nous	-
56	316074907		Deflector-flue, Black		Appelez-nous	-
NI	316021109		Screw,8-18 X 0.500 ,black   (Replaces: 316021110)			Immediately	$ 27.50
NI	316101503		Overlay-clock,black		Appelez-nous	-
NI	316021109		Screw,hex Head Cup Pt ,8-18 X 0.375 ,black,back/bodyside   (Replaces: 316021105)			Immediately	$ 27.50
NI	316519700		Screw,cup Pt ,8-18 X 0.375 ,chrome ,hinge,ind Light,manifold Panel   (Replaces: 316021108)				$ 10.02
