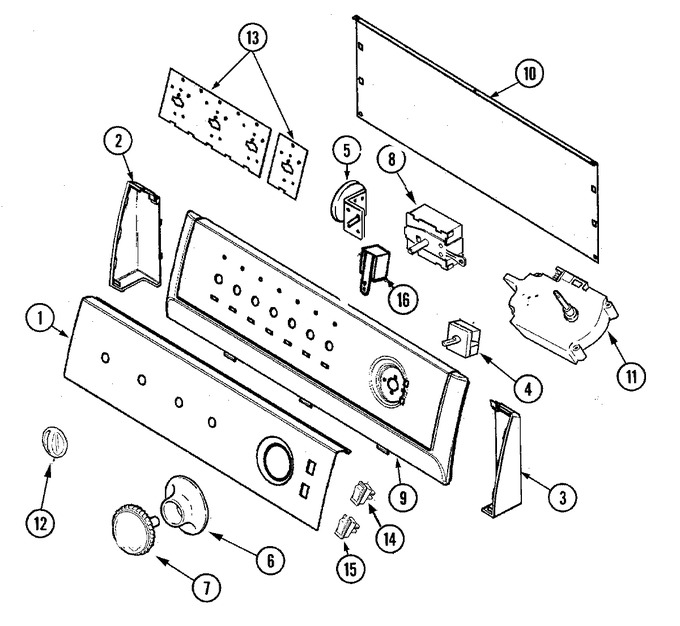

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 21002016 | Panel, Control (wht) | 10 |
|
- | ||||
| 2 | WP90767 | Screw (Replaces: 25-3092) | 10 |
|
Immediately | $ 7.04 | |||
| 2 | 21001546 | Endcap, Panel (lt-wht) | 10 |
|
- | ||||
| 3 | WP90767 | Screw (Replaces: 25-3092) | 10 |
|
Immediately | $ 7.04 | |||
| 3 | 21001547 | Endcap, Panel (rt-wht) | 10 |
|
- | ||||
| 4 | 21001852 | Switch, Temperature (6 Pos.) | 10 |
|
$ 86.19 | ||||
| 4 | WP90767 | Screw (Replaces: 25-3092) | 10 |
|
Immediately | $ 7.04 | |||
| 5 | 21001882 | Switch, Pressure (emz) | 10 |
|
- | ||||
| 5 | WP90767 | Screw (Replaces: 25-3092) | 10 |
|
Immediately | $ 7.04 | |||
| 6 | 21001520 | Skirt, Timer Knob (wht) | 10 |
|
- | ||||
| 7 | 21001526 | Knob, Timer (wht) | 10 |
|
$ 24.05 | ||||
| 8 | 21001687 | Switch, Speed (3 Pos.) | 10 |
|
- | ||||
| 9 | 21001552 | Frame (wht), Control Panel | 10 |
|
- | ||||
| 10 | WP90767 | Screw (Replaces: 25-3092) | 10 |
|
Immediately | $ 7.04 | |||
| 10 | WP12990527 | Screw, Sems (Replaces: 25-3457) | 10 |
|
Immediately | $ 7.15 | |||
| 10 | 21001527 | Shield, Rear (back Panel) | 10 |
|
- | ||||
| 11 | 21001929 | Timer | 10 |
|
$ 207.26 | ||||
| 11 | WP90767 | Screw (Replaces: 25-3092) | 10 |
|
Immediately | $ 7.04 | |||
| 12 | 21001544 | Knob, Selector (wht) | 10 |
|
- | ||||
| 13 | 21001603 | Shield, Control (3 Pos.) | 10 |
|
- | ||||
| 13 | 21001517 | Shield, Control (1 Pos.) | 10 |
|
$ 4.83 | ||||
| 14 | 21001482 | Switch, Momentary (wht) | 10 |
|
- | ||||
| 15 | 21001813 | Switch, Rocker (wht) | 10 |
|
- | ||||
| 16 | 31001397 | Buzzer | 10 |
|
- | ||||
| NI | 21002024 | Harness, Wiring | 10 |
|
- |
